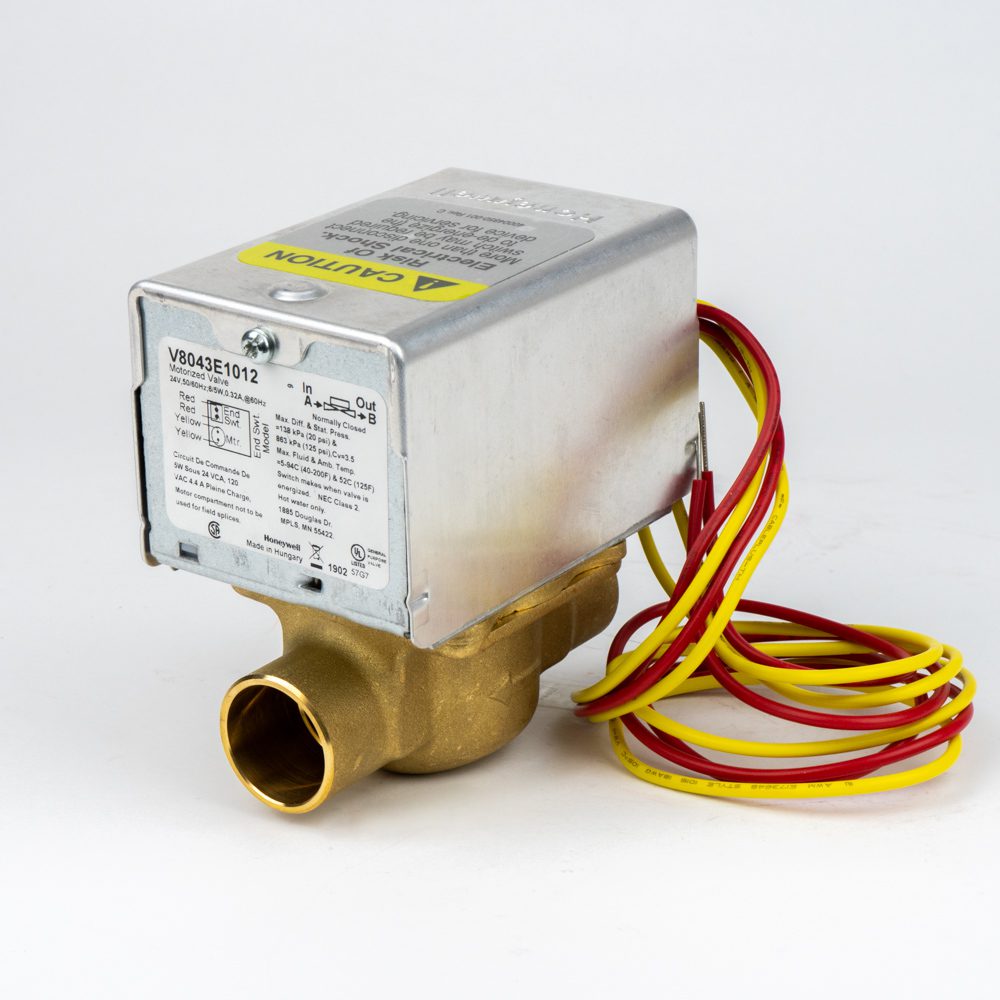

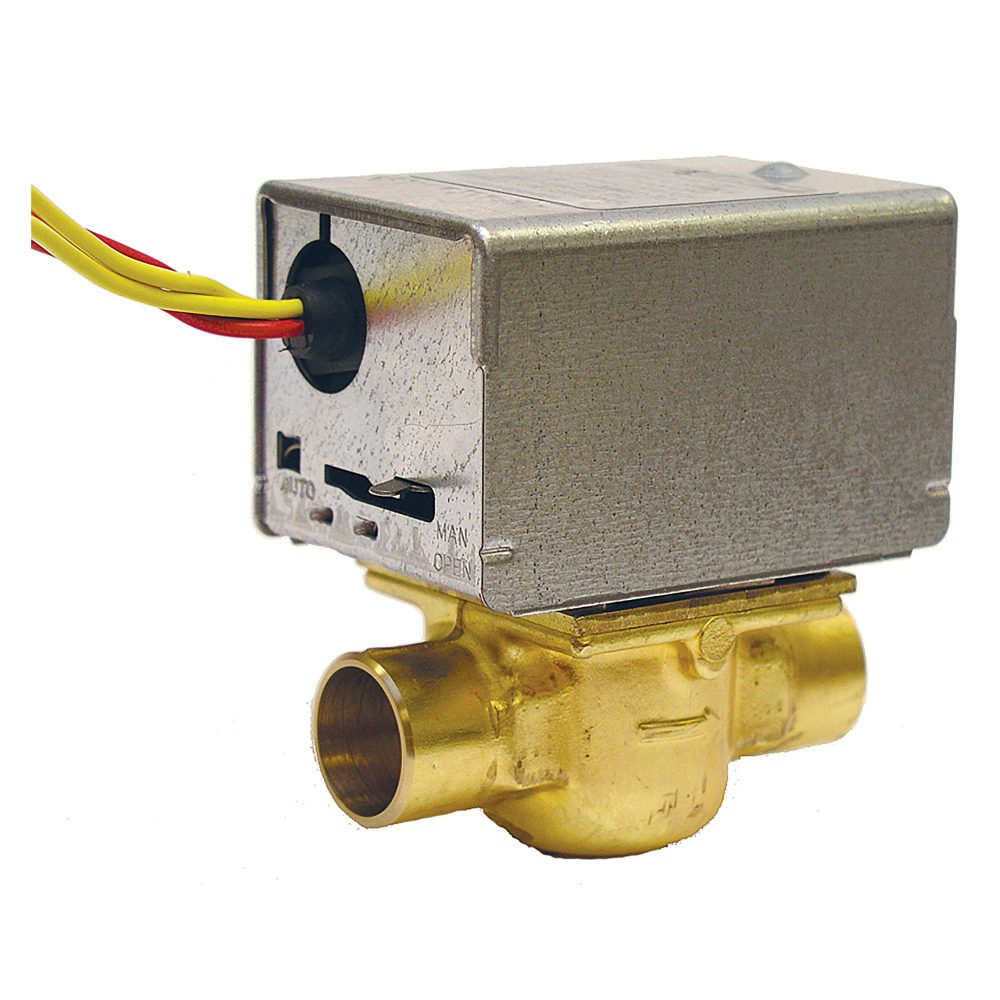

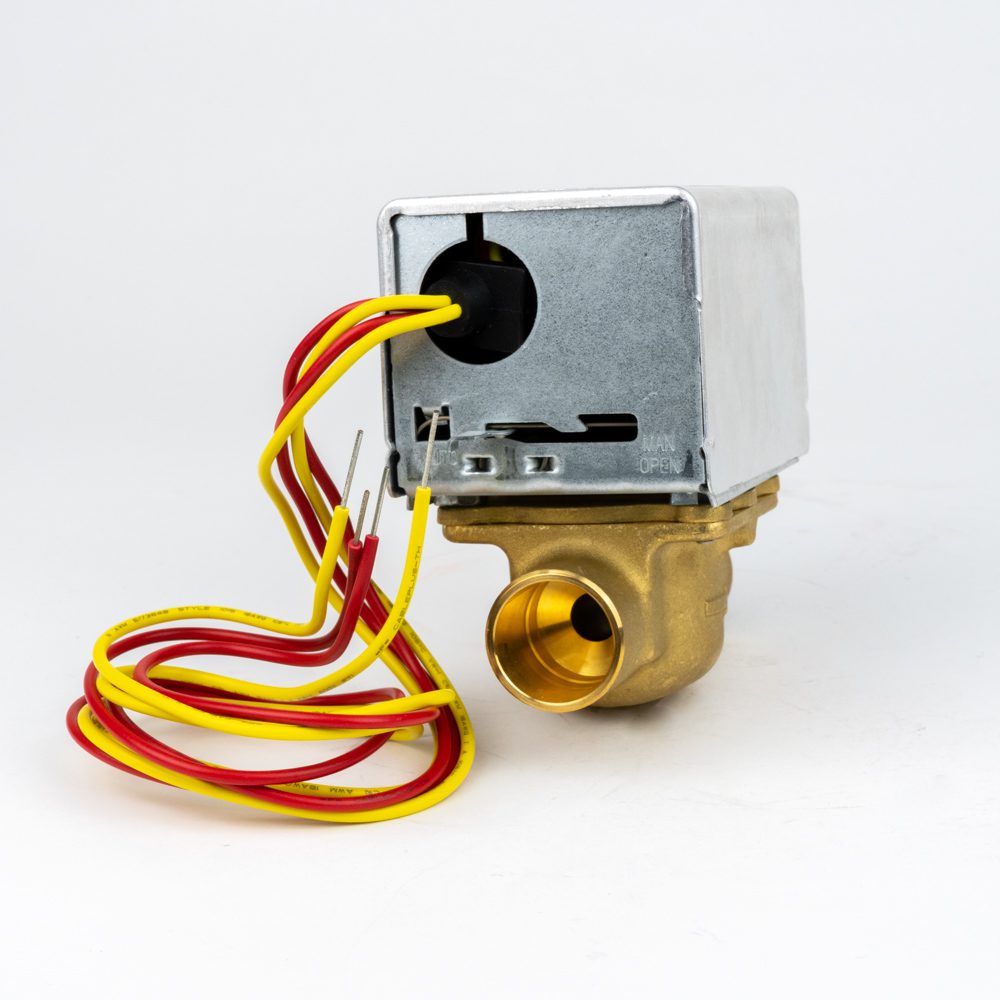

Honeywell V8043E1012 24V 3/4in Sweat Zone Valve with 18in Wire Leads

BRAND: Honeywell Home SKU: V8043E1012

(3 customer reviews)

$104.91

MSRP: $262.44
You save 60%

3/4″ Sweat Zone Valve with 18″ Wire Leads

Free Shipping
Ships Next Business Day
Availability:

23 In Stock

Description

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water. Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. Valve designed for cycling (not constantly powered on) applications.

Features
  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
  • All models may be installed without disassembling the valve.
  • Compact construction for easy installation.
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
  • Actuator motor may be replaced without removing the valve body or draining the system.

Additional information

Connection Type

Sweat

Body Pattern

Straight-through, Two-way

Differential Pressure

20 psi (138 kPa)

Voltage

24V

Static Pressure Rating

125 psi (862 kPa)

Flow Capacity

3.5 CV

Media Temperature

200?F Max, 50?F Min

Ambient Temperature

125?F Max, 52?C Max

UPC 085267990042
