Description

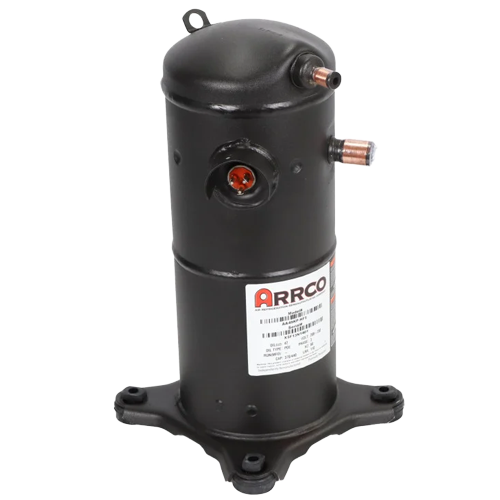

This Arrco 4-ton R-410A scroll compressor delivers dependable performance and is engineered to meet original equipment specifications, it is an ideal direct replacement for residential and light commercial HVAC systems requiring a high-efficiency scroll compressor.
Performance Specifications
- Discharge/Suction Temperature (°F): 50/100 | 45/130
- Return Gas/Liquid Temperature (°F): 70/85 | 65/115
- Capacity (BTU/hr): 55,100 | 40,700
- Power Input (Watts): 2,450 | 3,870
- Current Draw (Amps): 9.8 | 13.2
Dimensions & Weight
- Mounting Length/Width: 7.5 in
- Mounting Height: 17.17 in
- Overall Length/Width: 9.56 in
- Overall Height: 16.94 in
- Net Weight: 72.8 lbs
Electrical Information
- Locked Rotor Amps (LRA): 110 A
- Maximum Continuous Current (MCC): 23.4 A
- Maximum Operating Current: 20 A
- Run Load Amps – Contactor: 14.3 A
- Run Load Amps – Breaker & Wire: 12.8 A
- Run Capacitor: Not required
- Start Capacitor: Not required
