Description
Product Overview

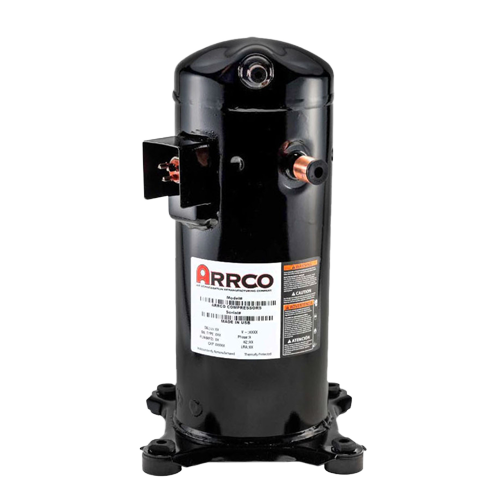

The Arrco AR32KP-BFV is a high-efficiency 2 3/4-ton scroll compressor engineered for dependable residential and light commercial cooling applications. Designed with precision-built scroll technology, this compressor delivers consistent capacity, quiet operation, and long service life — making it an ideal replacement or new-installation choice for HVAC professionals.
Performance Specifications
- Discharge / Suction Temperature (°F): 45/100 – 45/130
- Return Gas / Liquid Temperature (°F): 65/85 – 65/115
- Cooling Capacity: 30,800 – 37,100 BTU/hr
- Power Consumption: 1,920 – 2,890 Watts
- Operating Current: 8.9 – 13 Amps
Dimensions & Weight
- Mounting Length / Width: 7.5 in
- Mounting Height: 15.97 in
- Overall Length / Width: 9.69 in
- Overall Height: 15.73 in
- Net Weight: 63.2 lbs
Electrical Information
- Locked Rotor Amps (LRA): 83 A
- Maximum Continuous Current (MCC): 23 A
- Maximum Operating Current: 17.7 A
- Run Load Amps (Contactor): 16.4 A
- Run Load Amps (Breaker & Wire): 14.7 A
- Run Capacitor (MFD): See Product Label
- Run Capacitor Voltage: 370/440 V
- Start Capacitor: Not Required
Additional Specifications
- Oil Charge: 42 oz
- Oil Recharge: 38 oz
- Discharge Connection: 1/2 in Stub
- Suction Connection: 3/4 in Stub
