Description

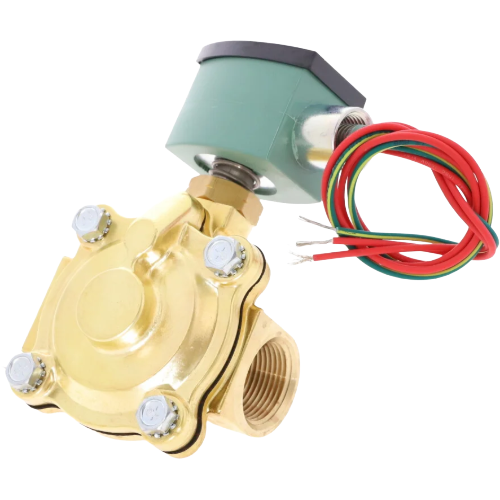

The ASCO 8210G14 is a heavy-duty, general-service solenoid valve engineered for reliable fluid control in demanding HVAC, industrial, and mechanical applications. Designed as a 2-way, normally open (N/O) configuration, this pilot-operated valve opens when de-energized and closes upon energization — ideal for fail-safe system designs where flow must be maintained during power interruptions.
Key Features
- 2-way, normally open (N/O) pilot-operated design for fail-safe flow control
- 1″ NPT connection for straightforward installation into standard piping systems
- 120VAC operating voltage for compatibility with common commercial and industrial power supplies
- 13 Cv flow coefficient for high-capacity fluid throughput
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seals for compatibility with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, including washdown and corrosive environments
Pressure & Media Ratings
- Air and Water: 5–150 PSI operating pressure range
- Light Oil: 5–125 PSI operating pressure range
Applications
- HVAC water and air control systems
- Industrial fluid control and process automation
- Light oil handling systems
- General-purpose on/off flow control in commercial and mechanical systems
Specifications
- SKU: 8210G14
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Open (N/O), Pilot Operated
- Connection Size: 1″ NPT
- Voltage: 120VAC
- Cv Rating: 13
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure: NEMA 4X
- Media: Air, Water (5–150 PSI); Light Oil (5–125 PSI)
The ASCO 8210G14 is backed by ASCO’s reputation for precision-engineered solenoid valves trusted by HVAC professionals and industrial technicians worldwide. Order from Jackson Systems for fast fulfillment and expert support.
