Description

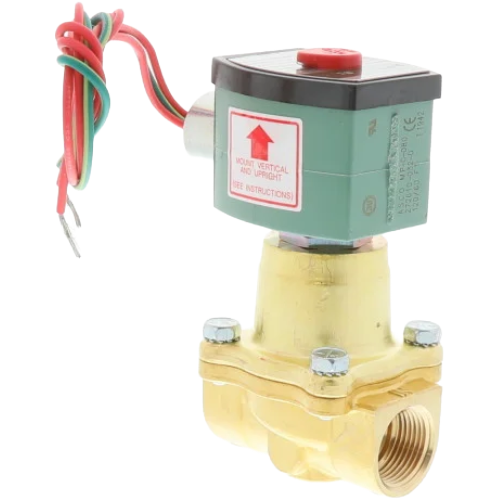

The ASCO 8210G26 is a heavy-duty, pilot-operated general service solenoid valve engineered for demanding HVAC, industrial, and fluid control applications. Featuring a 2-way, normally closed configuration, this valve remains shut when de-energized and opens upon application of 120VAC power — providing reliable on/off control for air, water, and light oil systems.
Key Features
- 2-Way, Normally Closed (NC) operation — valve closes automatically when de-energized
- Pilot-operated design for efficient actuation across a wide pressure range
- 3/4″ NPT pipe connection for easy installation into standard piping systems
- 120VAC coil voltage for compatibility with common control circuits
- 6 Cv flow coefficient for high-flow capacity
- Brass body construction for corrosion resistance and durability
- NBR (Buna-N) seals for compatibility with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor/outdoor use, washdown, and corrosive environments
Pressure Ratings
- Air: 0–350 PSI
- Water: 0–300 PSI
- Light Oil: 0–200 PSI
Specifications
- SKU: 8210G26
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed, Pilot Operated
- Pipe Size: 3/4″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 6
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Media: Air, Water, Light Oil
- Service Type: General Service
Applications
- HVAC air and water control systems
- Industrial fluid automation
- Light oil distribution and shutoff
- Compressed air systems
- Washdown and outdoor installations requiring NEMA 4X protection
The ASCO 8210G26 is built to ASCO’s renowned general service standards, making it a trusted choice for contractors and engineers who require dependable solenoid valve performance across a broad range of media and operating pressures.
