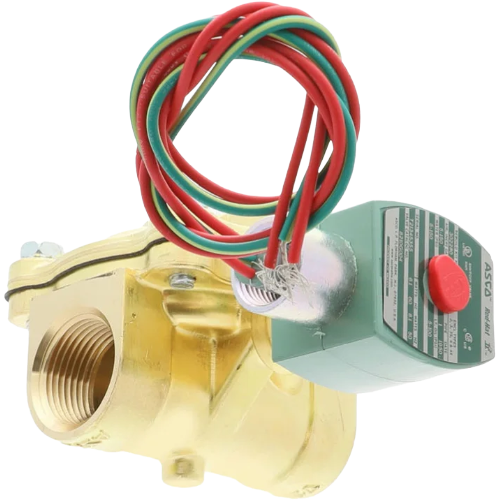

ASCO 8210G4 General Service Solenoid Valve Overview
The ASCO 8210G4 is a heavy-duty, 2-way normally closed solenoid valve engineered for reliable on/off fluid control in demanding commercial and industrial HVAC applications. Featuring a pilot-operated design, a robust brass body, and a NEMA 4X weatherproof enclosure, this valve delivers dependable performance across a wide range of media — including air, water, and light oil.
Key Features
- 2-way, normally closed (NC) configuration — valve closes when de-energized for fail-safe operation
- Pilot-operated design for efficient actuation at high flow rates
- 1″ NPT port connection for straightforward inline installation
- High flow capacity with a 13 Cv flow coefficient
- 120VAC coil voltage for standard electrical compatibility
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seals for compatibility with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to washdowns, rain, and corrosion
Specifications
- Valve Type: 2-Way, Normally Closed
- Operation: Pilot Operated
- Port Size: 1″ NPT
- Cv (Flow Coefficient): 13
- Voltage: 120VAC
- Pressure Range (Air & Water): 5–150 PSI
- Pressure Range (Light Oil): 5–100 PSI
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Service: General Purpose
- Compatible Media: Air, Water, Light Oil
- SKU: 8210G4
Applications
- Commercial HVAC water and air control systems
- Pneumatic and compressed air systems
- Light oil distribution and burner systems
- Industrial process control and automation
- Outdoor or washdown environments requiring NEMA 4X protection
Why Choose the ASCO 8210G4?
ASCO is a globally recognized leader in solenoid valve technology. The 8210G4 combines a high-flow 13 Cv rating with a wide operating pressure range and a durable brass body, making it a versatile choice for general service applications. The NEMA 4X enclosure ensures reliable operation even in harsh or wet environments, while NBR seals provide excellent compatibility with common HVAC and industrial media.
