Description

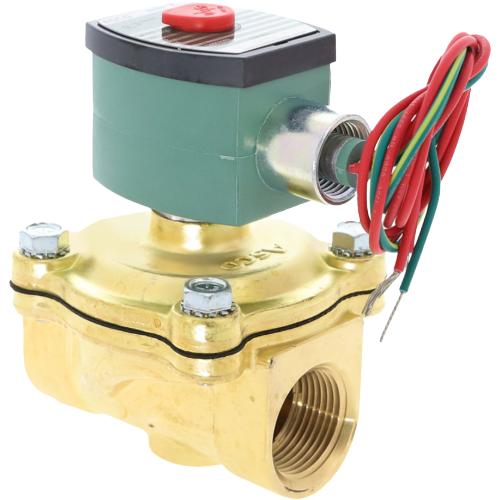

The ASCO 8210G54 is a heavy-duty, general-service solenoid valve engineered for reliable fluid control across a wide range of HVAC, industrial, and commercial applications. Featuring a 2-way, normally closed configuration, this pilot-operated valve remains closed when de-energized and opens fully upon application of 120VAC power — making it ideal for automated system control where fail-safe shutoff is required.
Built with a robust brass body and NBR (Buna-N) seals, the 8210G54 delivers excellent compatibility with air, water, and light oil media. Its NEMA 4X enclosure rating ensures reliable performance in wet, corrosive, or washdown environments, making it suitable for both indoor and outdoor installations.
Key Features
- 2-way, normally closed (NC) pilot-operated design
- 1″ NPT pipe connection for straightforward installation
- 120VAC operating voltage
- 13 Cv flow coefficient for high-capacity fluid flow
- Operating pressure range: 0–150 PSI for air; 0–125 PSI for water and light oil
- Brass body construction for durability and corrosion resistance
- NBR (Nitrile Buna-N) seals for compatibility with air, water, and light oil
- NEMA 4X enclosure rating — suitable for wet, corrosive, and outdoor environments
- General service classification for broad application versatility
Specifications
- SKU: 8210G54
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC), Pilot Operated
- Pipe Size: 1″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 13
- Air Pressure Range: 0–150 PSI
- Water & Light Oil Pressure Range: 0–125 PSI
- Body Material: Brass
- Seal Material: NBR (Nitrile Buna-N)
- Enclosure Rating: NEMA 4X
- Media: Air, Water, Light Oil
- Service Type: General Service
Applications
- HVAC air and water system control
- Compressed air systems
- Water supply and distribution lines
- Light oil handling systems
- Industrial process automation
- Outdoor and washdown environments requiring NEMA 4X protection
