Description

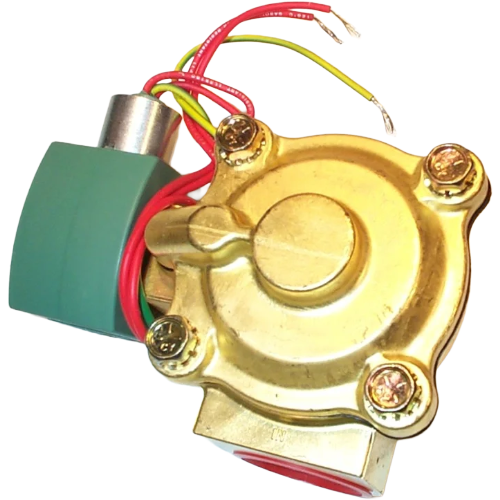

ASCO 8210G8-24VDC General Service Solenoid Valve Overview
The ASCO 8210G8-24VDC is a pilot-operated, 2-way normally closed solenoid valve engineered for dependable general service applications in commercial and industrial HVAC, plumbing, and fluid control systems. With a robust brass body construction, NBR (Buna-N) seals, and a NEMA 4X rated enclosure, this valve delivers reliable performance in demanding environments where moisture and corrosion resistance are critical.
Key Features
- 2-Way, Normally Closed (NC) configuration — valve closes when de-energized for fail-safe operation
- 1-1/4″ NPT port connection for straightforward pipe installation
- 24VDC coil voltage for compatibility with low-voltage control systems
- High flow capacity with a 15 Cv flow coefficient
- Operating pressure range: 5–125 PSI
- Pilot-operated design for efficient, low-power actuation across the full pressure range
- Brass body construction for durability and corrosion resistance
- NBR (Nitrile Butadiene Rubber) seals for compatibility with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to washdown, rain, and corrosion
Compatible Media
- Air
- Water
- Light Oil
Specifications
- SKU: 8210G8-24VDC
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC), Pilot Operated
- Port Size: 1-1/4″ NPT
- Coil Voltage: 24VDC
- Flow Coefficient (Cv): 15
- Pressure Range: 5–125 PSI
- Body Material: Brass
- Seal Material: NBR (Nitrile/Buna-N)
- Enclosure Rating: NEMA 4X
- Service Type: General Service
Application
Ideal for HVAC systems, process control, water treatment, pneumatic systems, and light oil service lines. The NEMA 4X enclosure makes it well-suited for installations in mechanical rooms, outdoor equipment, or any environment subject to moisture exposure. The pilot-operated design ensures smooth, reliable actuation with minimal power draw, while the high 15 Cv flow coefficient supports high-flow system demands.
