Description

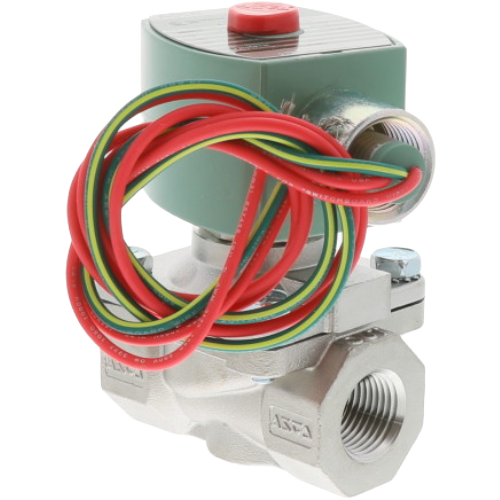

The ASCO 8210G87 is a 2-way, normally closed, pilot-operated solenoid valve engineered for demanding general-service applications in commercial and industrial HVAC, plumbing, and fluid-control systems. Built with a durable stainless steel body and NBR (Buna-N) seals, this valve delivers reliable shut-off performance across a wide range of compatible media and operating conditions.
Key Features
- 2-way, normally closed configuration — valve closes when de-energized for fail-safe operation
- Pilot-operated design for efficient actuation across the rated pressure range
- Stainless steel body for superior corrosion resistance in wet or harsh environments
- NBR (Buna-N) seals compatible with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor/outdoor use, including washdown and corrosive environments
- 1/2″ NPT port connections for straightforward installation into standard piping systems
Specifications
- SKU: 8210G87
- Brand: ASCO
- Valve Type: 2-Way Normally Closed, Pilot Operated
- Connection Size: 1/2″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 4
- Pressure Range — Air & Water: 0–150 PSI
- Pressure Range — Light Oil: 0–125 PSI
- Body Material: Stainless Steel
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Media: Air, Water, Light Oil
- Service Type: General Service
Applications
- HVAC and building automation fluid control
- Water and air shut-off in commercial systems
- Light oil service in heating and fuel systems
- Industrial process control requiring corrosion-resistant components
- Outdoor or washdown environments requiring NEMA 4X protection
