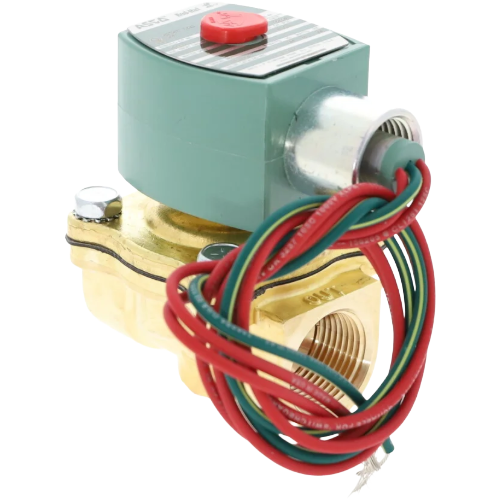

ASCO 8210G9 General Service Solenoid Valve Overview
The ASCO 8210G9 is a 2-way, normally closed, pilot-operated solenoid valve engineered for dependable general-service performance across a wide range of HVAC and industrial fluid-control applications. Built with a robust brass body and NBR (Buna-N) seals, this valve is designed to handle air, water, and light oil with consistent, long-lasting reliability. The NEMA 4X enclosure provides protection against dust, corrosion, and water ingress, making it well-suited for both indoor and outdoor installations.
Key Features
- 2-way, normally closed (NC) configuration — valve closes when de-energized for fail-safe operation
- Pilot-operated design for efficient actuation across the rated pressure range
- 3/4″ NPT port connection for straightforward installation into standard piping systems
- 120VAC coil voltage for compatibility with common North American power supplies
- 5 Cv flow coefficient for reliable, high-capacity fluid flow
- Operating pressure range: 5–125 PSI
- Compatible media: air, water, and light oil
- Brass body construction for corrosion resistance and durability
- NBR (Nitrile Butadiene Rubber) seals for broad media compatibility
- NEMA 4X enclosure rating — suitable for indoor/outdoor use, resistant to corrosion and washdown
Applications
- HVAC systems requiring automated fluid shut-off or flow control
- Compressed air lines and pneumatic systems
- Water supply and distribution control
- Light oil service in heating and industrial equipment
- General-purpose process control in commercial and light industrial environments
Specifications
- SKU: 8210G9
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC), Pilot Operated
- Port Size: 3/4″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 5
- Pressure Range: 5–125 PSI
- Compatible Media: Air, Water, Light Oil
- Body Material: Brass
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
