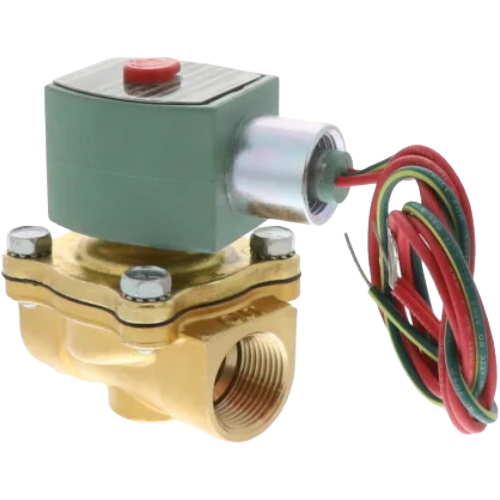

ASCO 8210G9-24V General Service Solenoid Valve Overview
The ASCO 8210G9-24V is a pilot-operated, 2-way normally closed solenoid valve engineered for dependable general-service performance across a wide range of HVAC, plumbing, and industrial fluid-control applications. With a robust brass body, NBR (Buna-N) seals, and a NEMA 4X-rated enclosure, this valve delivers corrosion-resistant operation in demanding environments — including wet, washdown, and outdoor installations.
Key Features
- 2-way, normally closed (NC) configuration — valve closes automatically when de-energized for fail-safe operation
- Pilot-operated design for efficient, low-power actuation across the rated pressure range
- 3/4″ NPT port connection for straightforward inline installation
- 24VAC coil voltage for compatibility with standard low-voltage HVAC control systems
- Flow coefficient (Cv) of 5 for reliable, consistent media flow
- Operating pressure range: 5–125 PSI
- Brass body construction for excellent corrosion resistance and long service life
- NBR (Nitrile Butadiene Rubber) seals — compatible with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, including washdown and corrosive environments
Compatible Media
- Air
- Water
- Light Oil
Specifications
- SKU: 8210G9-24V
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC), Pilot Operated
- Port Size: 3/4″ NPT
- Coil Voltage: 24VAC
- Flow Coefficient (Cv): 5
- Pressure Range: 5–125 PSI
- Body Material: Brass
- Seal Material: NBR (Nitrile/Buna-N)
- Enclosure Rating: NEMA 4X
- Service Type: General Service
Applications
- HVAC water and air control systems
- Compressed air lines
- Light oil distribution and shutoff
- Irrigation and water management systems
- Industrial process fluid control
- Outdoor and washdown-rated installations
