Description

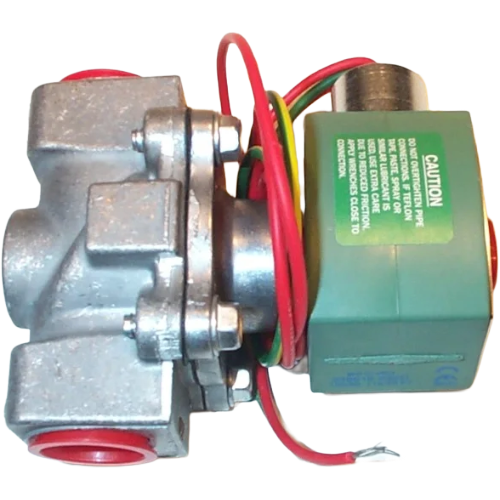

ASCO 8210G95HW 2-Way Normally Closed Solenoid Valve — Hot Water Service
The ASCO 8210G95HW is a heavy-duty, 2-way normally closed solenoid valve engineered specifically for hot water service applications. With a robust brass body, EPDM diaphragm, and a NEMA 4X-rated enclosure, this valve delivers reliable on/off fluid control in demanding HVAC, hydronic, and industrial environments where moisture resistance and high-temperature performance are essential.
Key Features
- 2-way, normally closed (NC) configuration — valve closes when de-energized for fail-safe operation
- 3/4″ NPT pipe connection for straightforward installation into standard plumbing systems
- 120VAC coil voltage for compatibility with common commercial and industrial control circuits
- 5 Cv flow coefficient for efficient fluid throughput
- Operating pressure range: 0–100 PSI
- Maximum fluid temperature: 210°F — optimized for hot water service
- Brass body construction for corrosion resistance and long service life
- EPDM diaphragm material compatible with hot water and a wide range of fluid media
- NEMA 4X enclosure rating provides protection against dust, splashing water, and corrosion
Specifications
- SKU: 8210G95HW
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (NC)
- Connection Size: 3/4″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 5
- Pressure Range: 0–100 PSI
- Maximum Temperature: 210°F
- Body Material: Brass
- Diaphragm Material: EPDM
- Enclosure Rating: NEMA 4X
- Service: Hot Water
Applications
- Hydronic heating and cooling systems
- Hot water supply and distribution control
- Commercial HVAC equipment
- Industrial process fluid control
- Boiler and water heater systems
