Description

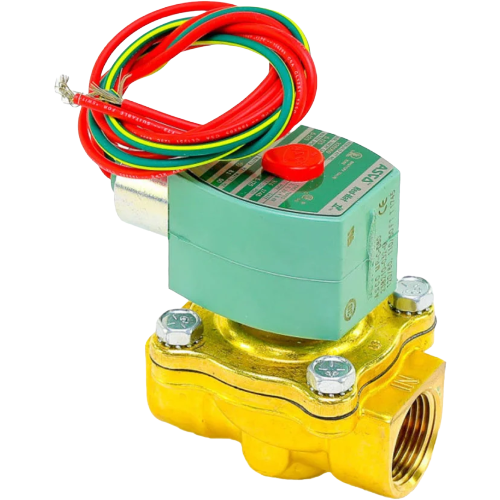

ASCO 8210G9LF General Service Solenoid Valve Overview
The ASCO 8210G9LF is a 2-way, normally closed, pilot-operated solenoid valve engineered for dependable general service applications. Built with a lead-free brass body and NBR seals, this valve is suited for use with air, water, and light oil media. Its NEMA 4X-rated enclosure provides robust protection against corrosion, dust, and water ingress — making it an ideal choice for demanding commercial and industrial HVAC environments.
Key Features
- 2-way, normally closed (N/C) configuration — valve closes when de-energized for fail-safe operation
- Pilot-operated design for efficient, low-power actuation
- 3/4″ NPT port connection for easy inline installation
- 120VAC coil voltage for compatibility with standard commercial power supplies
- Flow coefficient (Cv) of 5 for reliable media throughput
- Operating pressure range: 5–125 PSI
- Lead-free brass body construction — compliant with lead-free plumbing requirements
- NBR (Buna-N) seals for compatibility with air, water, and light oil media
- NEMA 4X enclosure rating — resistant to corrosion, windblown dust, rain, and hosedown
Compatible Media
- Air
- Water
- Light oil
Specifications
- Brand: ASCO
- Part Number: 8210G9LF
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (N/C), Pilot Operated
- Port Size: 3/4″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 5
- Pressure Range: 5–125 PSI
- Body Material: Lead-Free Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Service Type: General Service
Applications
- HVAC and building automation systems
- Water and fluid control in commercial facilities
- Compressed air systems
- Light oil distribution and control
- Industrial process control where NEMA 4X protection is required
