Description

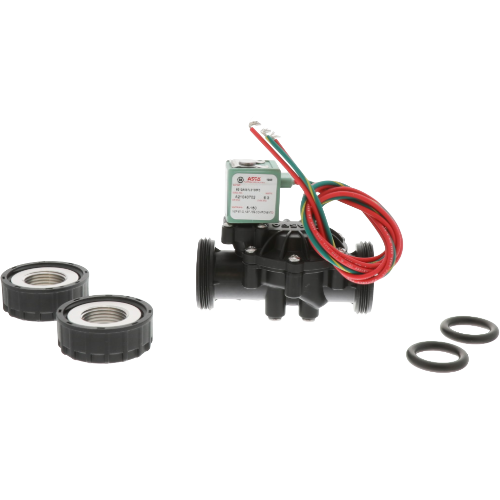

The ASCO 8212A037L0100F0 is a 3/4-inch normally closed (NC) solenoid valve engineered for potable water applications in commercial and industrial HVAC, plumbing, and fluid control systems. Designed and manufactured by ASCO — a globally recognized leader in fluid automation — this valve delivers dependable, electrically actuated shutoff performance wherever clean water flow control is required.
How It Works
As a normally closed valve, the 8212A037L0100F0 remains shut when de-energized, allowing flow only when the 120V coil is energized. This fail-safe design is ideal for applications where uncontrolled water flow must be prevented during a power loss or system shutdown.
Key Features
- 3/4″ pipe connection for straightforward installation into standard water lines
- Normally Closed (NC) operation — valve closes automatically when de-energized
- Operating pressure range: 5–150 PSI, suitable for a wide range of building water systems
- 120V AC coil voltage — compatible with standard commercial control circuits
- Rated for potable water service — safe for use in drinking water and domestic hot/cold water systems
- ASCO quality construction for long service life and reliable cycle performance
Typical Applications
- Potable and domestic water supply shutoff
- Commercial HVAC makeup water control
- Boiler and hydronic system water feed
- Irrigation and water treatment systems
- Industrial process water control
Specifications
- SKU: 8212A037L0100F0
- Brand: ASCO
- Valve Type: Solenoid Valve, Normally Closed (NC)
- Pipe Size: 3/4″
- Operating Pressure: 5–150 PSI
- Coil Voltage: 120V AC
- Media: Potable Water
