Description

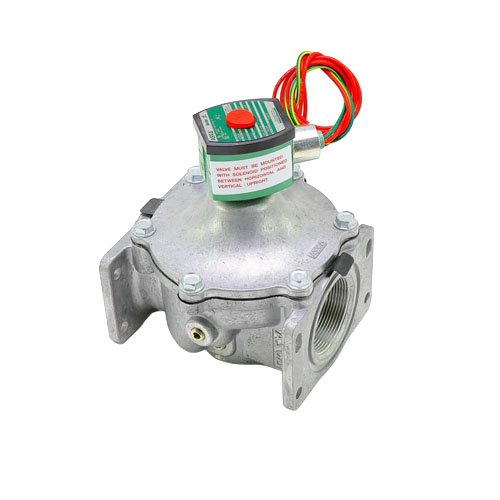

The ASCO 8214G281 is a heavy-duty, 2-way normally closed solenoid shutoff valve engineered for reliable fuel gas control in commercial and industrial HVAC applications. With a generous 2-inch port size available in NPT or flange end connections, this valve delivers high-flow performance with a 55 Cv flow coefficient capable of handling up to 2,940,500 BTU/hr — making it well-suited for large burner systems, boilers, and process heating equipment.
Designed to operate on 120VAC power, the valve snaps shut upon de-energization, providing a critical safety shutoff function in the event of a power loss or control signal interruption. The 0–5 PSI operating pressure range is ideal for low-pressure fuel gas distribution systems.
Key Features
- 2-way, normally closed (NC) operation — closes automatically on power loss for fail-safe fuel shutoff
- 2″ port size with NPT or flange end connections for flexible installation
- 120VAC coil voltage for compatibility with standard commercial control circuits
- 55 Cv flow coefficient supporting up to 2,940,500 BTU/hr capacity
- Operating pressure range: 0–5 PSI, optimized for low-pressure fuel gas service
- Aluminum body construction — lightweight yet durable for demanding environments
- NBR (Buna-N) seals for reliable compatibility with natural gas and other common fuel gases
- NEMA 4X enclosure rating — provides protection against corrosion, dust, and water ingress for indoor and outdoor installations
Specifications
- SKU: 8214G281
- Brand: ASCO
- Valve Type: 2-Way Solenoid, Normally Closed
- Port Size: 2 inch
- End Connection: NPT or Flange
- Voltage: 120VAC
- Flow Coefficient (Cv): 55
- BTU Capacity: 2,940,500 BTU/hr
- Pressure Range: 0–5 PSI
- Body Material: Aluminum
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
- Media: Fuel Gas
Applications
- Commercial and industrial boiler fuel gas shutoff
- Large burner management systems
- Process heating and combustion control
- Low-pressure natural gas distribution systems
- Safety shutoff in HVAC and mechanical room applications
