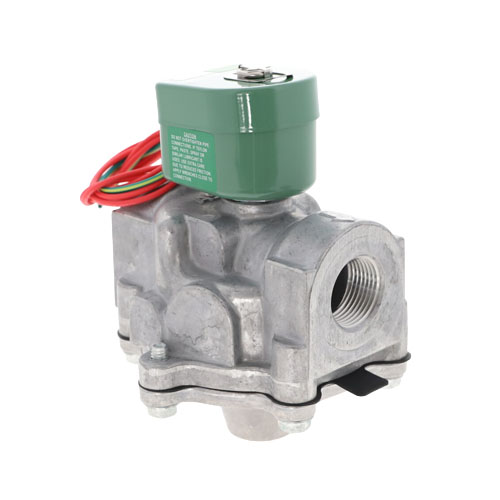

ASCO 8215C53 2-Way Normally Open Solenoid Valve Overview
The ASCO 8215C53 is a heavy-duty, 2-way normally open solenoid valve engineered for reliable control of air-fuel gas and vent applications in commercial and industrial HVAC systems. With a generous 22 Cv flow coefficient and a capacity of up to 1,191,750 BTU/hr, this valve is built to handle high-demand fuel gas service with precision and dependability.
Key Features
- 2-Way, Normally Open (N.O.) configuration — opens when de-energized for fail-safe operation
- 1″ NPT pipe connection for straightforward installation into standard gas piping
- 120VAC coil voltage for compatibility with common commercial power supplies
- 22 Cv flow coefficient delivering up to 1,191,750 BTU/hr capacity
- Operating pressure range: 0–25 PSI
- Aluminum body construction for a lightweight yet durable build
- NBR (Nitrile Butadiene Rubber) seals for excellent resistance to fuel gases and hydrocarbons
- NEMA 1 enclosure rating for indoor, general-purpose environments
- Designed for air-fuel gas and vent valve service
Application
The ASCO 8215C53 is ideal for use in burner management systems, commercial boilers, furnaces, and other gas-fired equipment where reliable, automatic shutoff and venting control is required. The normally open design ensures the valve remains open during power loss, making it suitable for vent valve applications where continuous flow is required in a de-energized state.
Specifications
- Brand: ASCO
- SKU: 8215C53
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Open (N.O.)
- Connection Size: 1″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 22
- Capacity: 1,191,750 BTU/hr
- Pressure Range: 0–25 PSI
- Body Material: Aluminum
- Seal Material: NBR (Nitrile)
- Enclosure: NEMA 1
- Media: Air, Fuel Gas, Vent
