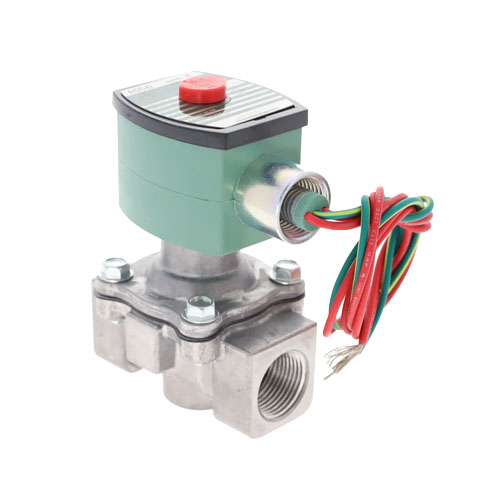

ASCO 8215G33 Two-Way Normally Open Solenoid Gas Vent Valve
The ASCO 8215G33 is a heavy-duty, 2-way normally open solenoid valve engineered for air-fuel gas vent applications in commercial and industrial HVAC and combustion systems. Featuring a robust aluminum body, NBR seals, and a NEMA 4X-rated enclosure, this valve delivers reliable, code-compliant performance in demanding environments where moisture, dust, and corrosive conditions are a concern.
Key Features
- 2-way, normally open (N.O.) solenoid valve configuration
- 3/4″ NPT pipe connection for straightforward installation
- 120VAC coil voltage for compatibility with standard commercial power supplies
- Flow coefficient (Cv) of 4.6 for efficient gas flow management
- Rated capacity of 247,500 BTU/hr for high-output combustion systems
- Operating pressure range: 0–125 PSI
- Aluminum body construction for lightweight durability and corrosion resistance
- NBR (Buna-N) seals for compatibility with air, fuel gas, and vent media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, including wash-down and corrosive environments
- Designed for air-fuel gas vent valve service
Application
The ASCO 8215G33 is ideal for use in gas-fired burner systems, boilers, furnaces, and other combustion equipment requiring a reliable normally open shutoff or vent valve. Its NEMA 4X enclosure makes it well-suited for installations in mechanical rooms, rooftop units, and outdoor equipment where environmental protection is critical.
Specifications
- SKU: 8215G33
- Brand: ASCO
- Valve Type: 2-Way, Normally Open (N.O.)
- Connection Size: 3/4″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 4.6
- Capacity: 247,500 BTU/hr
- Pressure Range: 0–125 PSI
- Body Material: Aluminum
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Media: Air / Fuel Gas / Vent
