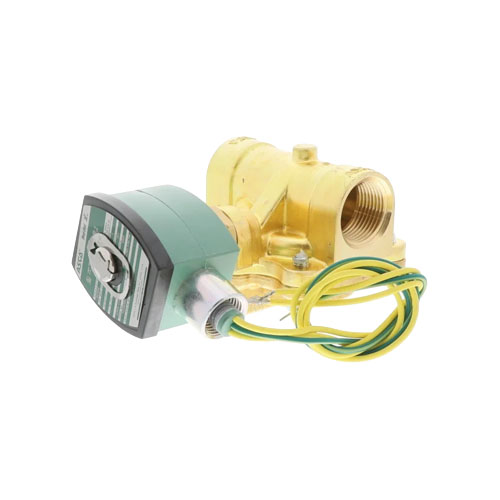

ASCO 8220G97 2-Way Normally Open Solenoid Valve Overview
The ASCO 8220G97 is a heavy-duty, pilot-operated solenoid valve engineered for demanding steam and hot water applications in commercial and industrial HVAC systems. With a robust brass body, EPDM diaphragm, and NEMA 4X-rated enclosure, this valve delivers reliable, long-service performance in wet, corrosive, or washdown environments.
Key Features
- 2-way, normally open (N.O.) configuration — valve opens when de-energized for fail-safe operation
- Pilot-operated design for efficient, low-power actuation across a wide pressure range
- 1″ NPT port connections for straightforward installation in standard piping systems
- High flow capacity with a 13.5 Cv rating to minimize pressure drop
- 120VAC coil voltage for compatibility with common commercial control circuits
- Brass body construction for excellent corrosion resistance and durability
- EPDM diaphragm — ideal for steam, hot water, and other high-temperature media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, including washdown and corrosive environments
Specifications
- SKU: 8220G97
- Brand: ASCO
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Open (N.O.), Pilot Operated
- Port Size: 1″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 13.5
- Steam Pressure Range: 5–125 PSI
- Hot Water Pressure Range: 5–150 PSI
- Body Material: Brass
- Diaphragm Material: EPDM
- Enclosure Rating: NEMA 4X
Applications
- Steam distribution and control systems
- Hot water heating and hydronic systems
- Commercial boiler and process piping
- Industrial fluid control in corrosive or washdown environments
- HVAC equipment requiring fail-safe open operation
Why Choose the ASCO 8220G97?
ASCO is a globally recognized leader in fluid automation and solenoid valve technology. The 8220G97 combines a field-proven pilot-operated design with premium materials — brass body and EPDM diaphragm — to handle the rigors of steam and hot water service. The NEMA 4X enclosure ensures the coil and electrical components are protected against moisture, dust, and corrosion, making this valve a dependable choice for both indoor mechanical rooms and outdoor installations.
