Description

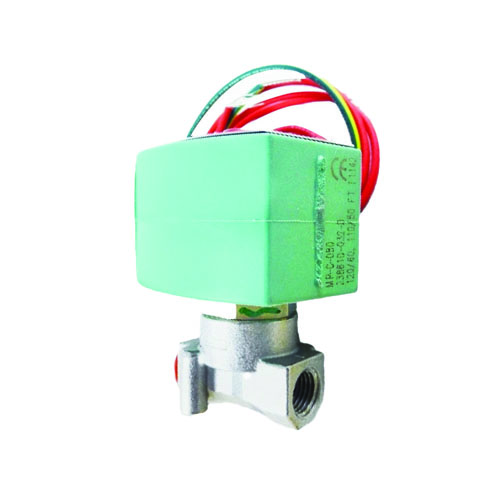

The ASCO 8262H226 is a direct-acting, 2-way normally closed solenoid valve engineered for reliable flow control in demanding general-service applications. Built with a stainless steel body and NBR disc, this valve is designed to handle air, water, and light oil across a broad range of commercial and industrial HVAC and process systems.
Key Features
- 2-way, normally closed (N/C) direct-acting solenoid valve — opens when energized, closes when de-energized
- 1/4″ NPT port connection for easy inline installation
- 120VAC coil voltage for compatibility with standard control circuits
- Flow coefficient (Cv) of 0.73 for precise flow management
- Operating pressure range: 0–100 PSI
- Stainless steel body for superior corrosion resistance and long service life
- NBR (Buna-N) disc provides excellent sealing for air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to corrosion, dust, and washdowns
- Direct-acting design operates without a minimum pressure differential requirement
Specifications
- SKU: 8262H226
- Brand: ASCO
- Valve Type: 2-Way, Normally Closed
- Operation: Direct Acting
- Port Size: 1/4″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 0.73
- Pressure Range: 0–100 PSI
- Body Material: Stainless Steel
- Seal/Disc Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Media: Air, Water, Light Oil
- Service Type: General Service
Applications
- HVAC air and water control systems
- Light oil flow shutoff and regulation
- General industrial and commercial process control
- Outdoor or washdown environments requiring NEMA 4X protection
- Corrosive or high-humidity installations where stainless steel construction is required
The ASCO 8262H226 is backed by ASCO’s reputation for precision solenoid valve engineering, making it a trusted choice for HVAC contractors and mechanical engineers who need dependable on/off fluid control in tough service conditions.
