Description

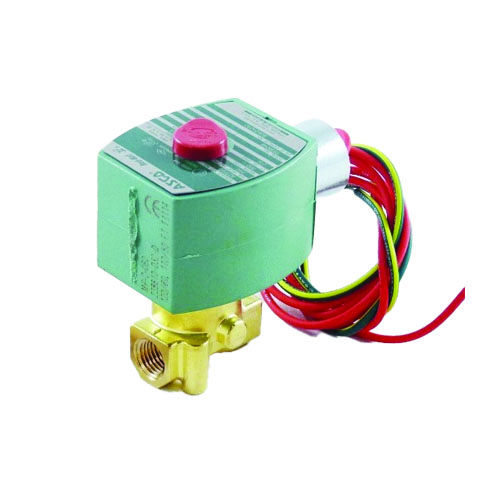

The ASCO 8262H232 is a direct-acting, 2-way normally closed solenoid valve engineered for reliable general-service fluid control across a wide range of industrial and HVAC applications. Built with a durable brass body and NBR disc, this valve delivers dependable shut-off performance for air, water, and light oil media. Its NEMA 4X enclosure rating makes it suitable for use in wet, corrosive, or washdown environments, providing added protection and longevity in demanding installations.
Key Features
- 2-way, normally closed (NC) direct-acting solenoid valve
- 1/4″ NPT port connection for easy inline installation
- 120VAC coil voltage for standard electrical compatibility
- Flow coefficient (Cv) of 0.35 for precise flow control
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) disc for compatibility with air, water, and light oil
- NEMA 4X enclosure rating — suitable for wet, corrosive, and washdown environments
- General service design for broad application versatility
Pressure Ratings by Media
- Air: 0–340 PSI
- Water: 0–300 PSI
- Light Oil: 0–215 PSI
Specifications
- SKU: 8262H232
- Brand: ASCO
- Valve Type: 2-Way Normally Closed
- Actuation: Direct Acting
- Port Size: 1/4″ NPT
- Voltage: 120VAC
- Cv: 0.35
- Body Material: Brass
- Seal/Disc Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Compatible Media: Air, Water, Light Oil
Applications
- HVAC and refrigeration system fluid control
- Compressed air systems
- Water and process fluid shut-off
- Light oil flow control
- Industrial automation and OEM equipment
