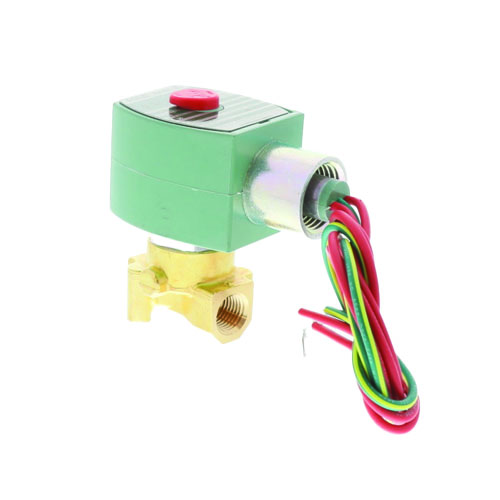

ASCO 8262H90 Direct-Acting General Service Solenoid Valve
The ASCO 8262H90 is a direct-acting, 2-way normally closed solenoid valve engineered for reliable fluid control across a wide range of general service HVAC and industrial applications. With a robust brass body, NBR disc, and NEMA 4X rated enclosure, this valve delivers dependable performance in demanding environments where moisture and corrosion resistance are essential.
Key Features
- 2-way, normally closed (NC) operation — valve closes when de-energized for fail-safe control
- Direct-acting design — operates at zero differential pressure, no minimum pressure required
- 1/4″ NPT port connection for easy inline installation
- 120VAC coil voltage for compatibility with standard control circuits
- .88 Cv flow coefficient for precise flow management
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) disc — compatible with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, resistant to washdown, rain, and corrosion
Operating Specifications
- Voltage: 120VAC
- Connection Size: 1/4″ NPT
- Flow Coefficient (Cv): 0.88
- Pressure Range — Air and Water: 0–36 PSI
- Pressure Range — Light Oil: 0–33 PSI
- Valve Action: Normally Closed (NC)
- Operation Type: Direct Acting
- Body Material: Brass
- Seal/Disc Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
Compatible Media
- Air
- Water
- Light Oil
Applications
- HVAC fluid control systems
- Compressed air systems
- Water and light oil service lines
- General industrial automation
- OEM equipment integration
The ASCO 8262H90 is part of ASCO’s trusted 8262 Series, a go-to solution for contractors and engineers who need a compact, reliable, and versatile solenoid valve for everyday service applications. The NEMA 4X enclosure makes it an excellent choice for installations exposed to the elements or requiring washdown protection.
