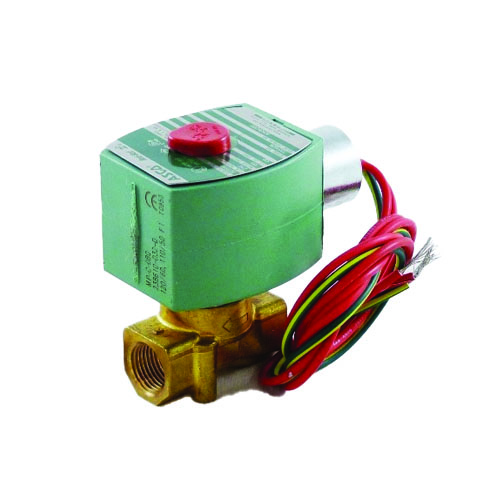

ASCO 8263H200 2-Way Normally Closed Solenoid Valve, 3/8″ NPT, 120VAC

Description

The ASCO 8263H200 is a direct-acting, 2-way normally closed solenoid valve engineered for dependable general service duty across a wide range of fluid media. Built with a robust brass body, NBR disc, and a NEMA 4X rated enclosure, this valve delivers reliable shutoff performance in demanding commercial and industrial HVAC, plumbing, and process control applications.

Key Features

• 2-way, normally closed (NC) direct-acting solenoid valve
• 3/8″ NPT port connection for easy inline installation
• 120VAC coil voltage for standard electrical compatibility
• .52 Cv flow coefficient for precise flow control
• Brass body construction for corrosion resistance and durability
• NBR (Buna-N) disc material — compatible with air, water, and light oil
• NEMA 4X enclosure rating — suitable for indoor and outdoor use, including washdown environments
• Direct-acting design operates without minimum pressure differential

Pressure Ratings

• Air: 0–210 PSI
• Water: 0–185 PSI
• Light Oil: 0–100 PSI

Compatible Media

• Air
• Water
• Light Oil

Specifications

• SKU: 8263H200
• Brand: ASCO
• Valve Type: 2-Way Normally Closed
• Operation: Direct Acting
• Port Size: 3/8″ NPT
• Voltage: 120VAC
• Cv: .52
• Body Material: Brass
• Seal/Disc Material: NBR (Buna-N)
• Enclosure Rating: NEMA 4X
• Service Type: General Service

The ASCO 8263H200 is ideal for HVAC systems, compressed air lines, water control circuits, and light oil service where a reliable, energize-to-open solenoid valve is required. The NEMA 4X enclosure ensures protection against dust, splashing water, and corrosion, making it suitable for both indoor and outdoor installations.
