Description

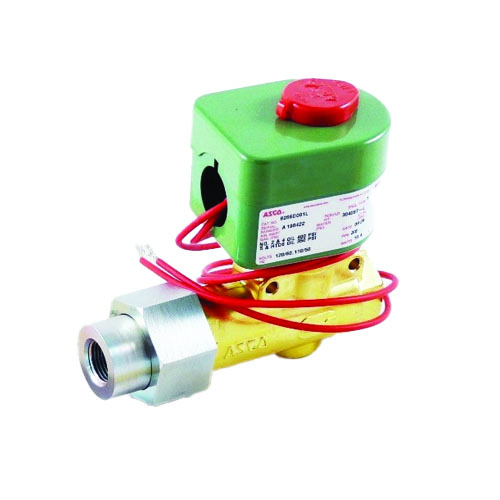

The ASCO 8266D1L is a direct-acting, 2-way normally closed solenoid valve engineered specifically for fuel oil shutoff applications in commercial and industrial HVAC and burner systems. Built with a brass body and stainless steel internal components, this valve delivers reliable, leak-tight shutoff across a wide range of heavy fuel oil viscosities — from light #2 distillate oils to highly viscous heated #6 residual oils.
With a 3/8″ NPT connection, 120VAC coil, and a .34 Cv flow coefficient, the 8266D1L is ideally suited for oil burner fuel trains, boiler fuel supply lines, and other fuel oil control applications where positive shutoff is critical.
Key Features
- 2-way, normally closed (N/C) direct-acting solenoid valve — opens when energized, closes on power loss for fail-safe shutoff
- Brass body construction for durability and corrosion resistance in fuel oil service
- Stainless steel internal components for extended service life with viscous oils
- 3/8″ NPT pipe connections for easy installation into standard fuel oil piping
- 120VAC coil voltage — compatible with standard burner control circuits
- .34 Cv flow coefficient for precise flow control in small-bore fuel lines
Pressure & Fluid Ratings
- 0–400 PSI operating pressure range for #2 Fuel Oil at 60 SSU
- 0–400 PSI operating pressure range for #4 Fuel Oil at 300 SSU
- 0–350 PSI operating pressure range for #5 Fuel Oil
- 0–350 PSI operating pressure range for heated #6 Fuel Oil up to 5000 SSU
Typical Applications
- Oil burner fuel shutoff on commercial and industrial boilers
- Fuel oil supply and return line control
- Burner management and safety shutoff systems
- Heating plant fuel train assemblies
Specifications
- SKU: 8266D1L
- Brand: ASCO
- Valve Type: 2-Way Normally Closed, Direct Acting
- Connection Size: 3/8″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 0.34
- Body Material: Brass
- Internal Components: Stainless Steel
- Media: #2, #4, #5, and #6 Fuel Oil
- Max Pressure (#2 & #4 Fuel Oil): 400 PSI
- Max Pressure (#5 & Heated #6 Fuel Oil): 350 PSI
- Max Viscosity: Up to 5000 SSU (heated #6 fuel oil)
