Description

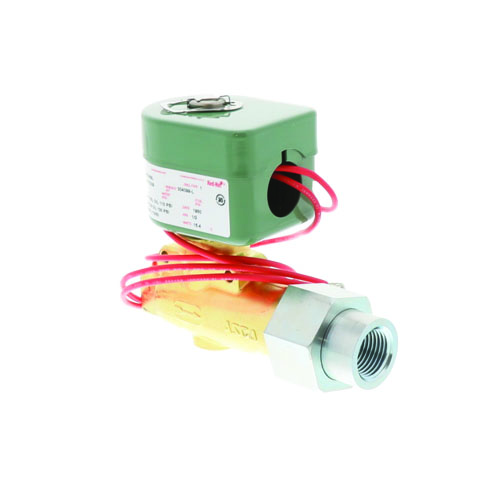

The ASCO 8266D69L is a direct-acting, 2-way normally closed solenoid valve engineered specifically for fuel oil shutoff applications. Featuring a robust brass body with stainless steel internal components, this valve delivers reliable, leak-tight shutoff across a wide range of fuel oil viscosities — from light distillates to heavy heated oils — making it a trusted solution for commercial and industrial burner systems.
When de-energized, the valve remains closed, providing a fail-safe shutoff that protects burner equipment and prevents unintended fuel flow. Upon energizing at 120VAC, the direct-acting solenoid opens the valve immediately, without requiring a minimum pressure differential to operate.
Key Specifications
- SKU: 8266D69L
- Brand: ASCO
- Valve Type: 2-Way, Normally Closed (N/C)
- Actuator: Direct Acting Solenoid
- Port Size: 1/2″ NPT
- Voltage: 120VAC
- Flow Coefficient (Cv): 1.2
- Body Material: Brass
- Internal Components: Stainless Steel
Pressure & Fluid Compatibility
- 0–110 PSI — #2 Fuel Oil at 60 SSU
- 0–110 PSI — #4 Fuel Oil at 300 SSU
- 0–100 PSI — #5 Fuel Oil or Heated #6 Fuel Oil up to 5,000 SSU
Features & Benefits
- Direct-acting design operates without a minimum pressure differential — works at zero pressure
- Normally closed configuration provides fail-safe fuel shutoff when power is lost
- Brass body offers excellent corrosion resistance in fuel oil service
- Stainless steel internals ensure long service life in high-viscosity oil applications
- Wide viscosity range (up to 5,000 SSU) accommodates #2 through heated #6 fuel oils
- Compact 1/2″ NPT connection simplifies installation in tight burner control panels
- 1.2 Cv flow coefficient delivers adequate flow for residential and light commercial burner applications
Typical Applications
- Oil burner fuel shutoff on residential and commercial boilers
- Industrial fuel oil supply line control
- Burner management and safety shutoff systems
- Fuel oil transfer and distribution systems handling #2, #4, #5, and #6 fuel oils
