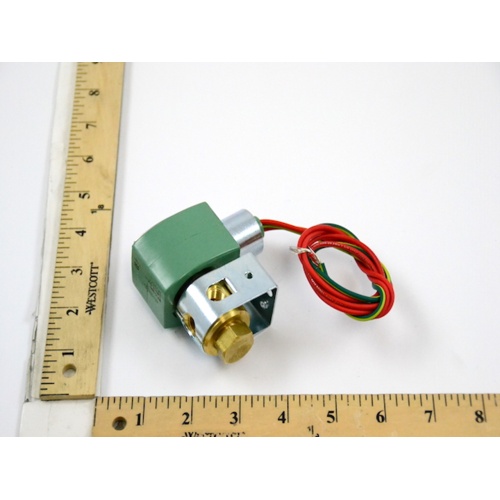

ASCO 8320G1-24VDC 3-Way Universal Solenoid Valve Overview
The ASCO 8320G1-24VDC is a direct-acting, 3-way universal solenoid valve engineered for reliable general-service applications across a wide range of media. Built with a durable brass body and NBR (Buna-N) seal, this valve handles air, water, and light oil with ease, making it a versatile choice for HVAC, pneumatic control, and fluid management systems. The NEMA 4X enclosure rating ensures protection against corrosion, dust, and water ingress — suitable for both indoor and outdoor installations.
Key Features
- 3-way universal valve configuration for flexible piping arrangements
- Direct-acting design — operates without minimum pressure differential
- 1/8″ NPT port connection for compact system integration
- 24VDC coil voltage for low-voltage control system compatibility
- Flow coefficient (Cv) of 0.09 for precise, low-flow control
- Operating pressure range: 0–65 PSI
- Compatible media: air, water, and light oil
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seal material for broad media compatibility
- NEMA 4X enclosure rating — suitable for wet, corrosive, and outdoor environments
Specifications
- SKU: 8320G1-24VDC
- Brand: ASCO
- Valve Type: 3-Way Universal, Direct Acting
- Port Size: 1/8″ NPT
- Coil Voltage: 24VDC
- Flow Coefficient (Cv): 0.09
- Pressure Range: 0–65 PSI
- Compatible Media: Air, Water, Light Oil
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
Applications
- HVAC pneumatic control circuits
- Air and water pilot control systems
- Light oil service lines
- General-purpose fluid switching in commercial and industrial environments
- Building automation and controls integration
Why Choose the ASCO 8320G1-24VDC?
ASCO is a globally recognized leader in solenoid valve technology, and the 8320G1-24VDC reflects that legacy of quality. Its direct-acting operation means it functions reliably even at zero pressure differential — no minimum line pressure required. The NEMA 4X rating and brass construction make it a dependable solution in demanding environments, while the compact 1/8″ NPT footprint fits easily into tight control panels and equipment enclosures. Whether you’re controlling airflow in a pneumatic system or managing water or light oil in a process line, this valve delivers consistent, long-lasting performance.
