Description

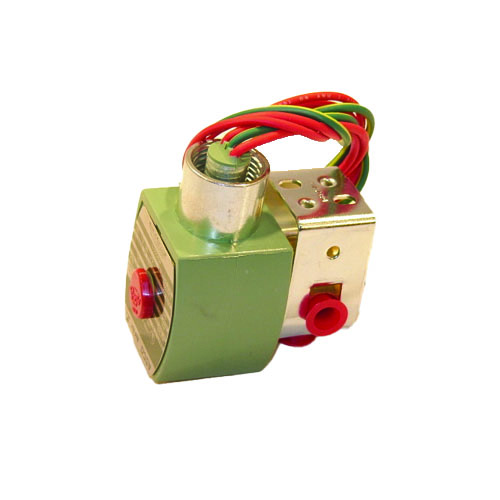

ASCO 8320G13 3-Way Normally Closed Direct-Acting Solenoid Valve
The ASCO 8320G13 is a direct-acting, 3-way normally closed solenoid valve engineered for general service applications in HVAC, industrial, and fluid control systems. Built with a durable brass body and NBR (Buna-N) seal, this valve delivers reliable shutoff and directional flow control for air, water, and light oil media. Its compact 1/8″ NPT port size and 120VAC coil make it an ideal drop-in solution for a wide range of commercial and light-industrial control circuits.
Key Features
- 3-way, normally closed (NC) valve configuration for positive shutoff when de-energized
- Direct-acting design — operates independently of line pressure for consistent performance
- 1/8″ NPT port connection for easy installation in standard piping systems
- 120VAC coil voltage for compatibility with common control circuits
- Flow coefficient (Cv) of 0.09 for precise, low-flow applications
- Rated 0–150 PSI for air service
- Rated 0–125 PSI for water and light oil service
- Brass body construction for corrosion resistance and long service life
- NBR (Nitrile) seal material compatible with air, water, and light oil media
- NEMA 4X enclosure rating — suitable for indoor/outdoor use, watertight and corrosion-resistant
Specifications
- SKU: 8320G13
- Brand: ASCO
- Valve Type: 3-Way, Normally Closed
- Operation: Direct Acting
- Port Size: 1/8″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 0.09
- Pressure Rating (Air): 0–150 PSI
- Pressure Rating (Water / Light Oil): 0–125 PSI
- Body Material: Brass
- Seal Material: NBR (Nitrile Butadiene Rubber)
- Enclosure Rating: NEMA 4X
- Service: General Service — Air, Water, Light Oil
Applications
- HVAC pneumatic control circuits
- Air and gas pilot control systems
- Water and light oil distribution control
- Industrial automation and process control
- OEM equipment and machinery fluid control
