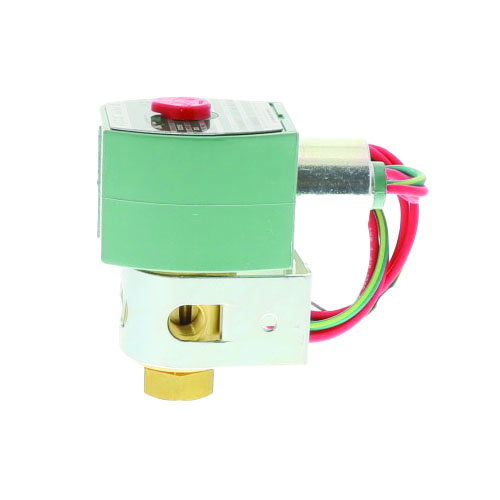

ASCO 8320G136 3-Way Normally Open Direct Acting Solenoid Valve
The ASCO 8320G136 is a general-service, direct-acting solenoid valve engineered for reliable fluid control in demanding HVAC, industrial, and commercial applications. With a 3-way normally open configuration, this valve allows flow through the outlet port when de-energized and redirects or shuts off flow when energized — making it ideal for pilot control, safety shutoff, and diverting service.
Key Features
- 3-way normally open (N/O) valve configuration for versatile flow control
- Direct-acting design — operates without requiring a minimum pressure differential
- 1/8″ NPT port connections for easy inline installation
- 120VAC coil voltage for compatibility with standard control circuits
- Flow coefficient (Cv) of 0.06 for precise low-flow applications
- Rated for 0–200 PSI operating pressure range
- Compatible media: air, water, and light oil
- Brass body construction for corrosion resistance and durability
- NBR (Buna-N) seal material for broad fluid compatibility
- NEMA 4X enclosure rating — watertight and corrosion-resistant for indoor and outdoor use
Specifications
- SKU: 8320G136
- Brand: ASCO
- Valve Type: Solenoid, 3-Way Normally Open
- Port Size: 1/8″ NPT
- Coil Voltage: 120VAC
- Flow Coefficient (Cv): 0.06
- Pressure Range: 0–200 PSI
- Compatible Media: Air, Water, Light Oil
- Operation: Direct Acting
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Enclosure Rating: NEMA 4X
- Service: General Purpose
Application
The ASCO 8320G136 is well-suited for a wide range of general-service applications including pneumatic pilot control, process automation, HVAC equipment control, and fluid diversion systems. The NEMA 4X-rated enclosure makes it suitable for installation in wet or corrosive environments, while the brass body and NBR seals ensure long service life across air, water, and light oil media. The direct-acting mechanism guarantees reliable operation even at zero differential pressure.
