Description

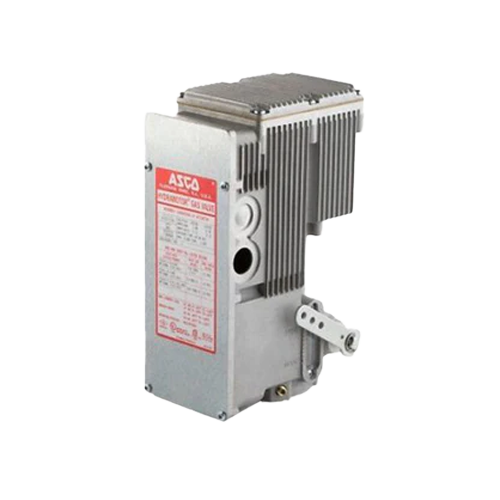

The ASCO AH2E112A is a 120 V AC hydramotor electrohydraulic actuator ideal for valve and burner control applications in industrial and commercial systems. Designed for fast on/off actuation (6–14 second cycle), this rugged actuator extends when powered and retracts by spring force for fail-safe shutoff. It’s engineered with durable materials to withstand harsh environments and is often used in combination with ASCO V710 gas valve bodies for effective main-line gas control in boilers, furnaces, ovens, and automated combustion equipment.
Key Features
- Electrohydraulic action: Smooth powered stroke with rapid spring-return shutoff.
- 120 V AC operation: Compatible with standard industrial power supplies.
- Fast response: 6–14 s actuation time for quick system response.
- General-purpose & watertight options: Suitable for indoor or outdoor installations.
- Visual position indicator: Easy verification of open/closed status.
- Mounts directly to V710 valve bodies: Commonly used in gas control trains.
