Description
Overview

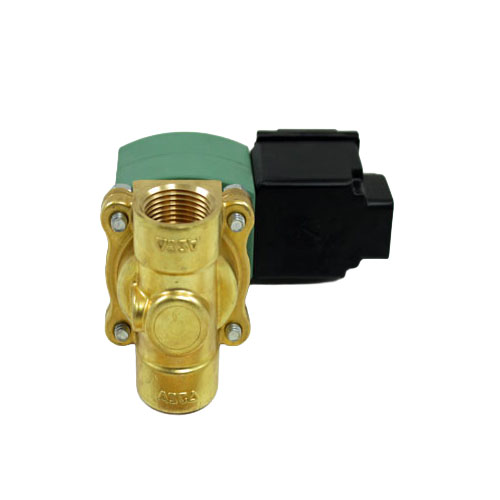

The ASCO JKF8030G3E-24V is a 2-way, normally closed solenoid valve engineered for reliable on/off control of air and water in demanding HVAC, commercial, and industrial applications. Featuring a robust brass body, EPDM seals, and a NEMA 4X-rated enclosure with an integrated junction box, this valve delivers corrosion-resistant performance in both indoor and outdoor environments.
Key Features
- 2-way, normally closed operation — valve closes automatically when de-energized for fail-safe control
- 3/4″ NPT pipe connection for straightforward installation into standard plumbing and HVAC systems
- 24VAC coil voltage — compatible with low-voltage HVAC control circuits
- 5 Cv flow coefficient for efficient fluid handling with minimal pressure drop
- Operating pressure range: 0–2 PSI, suitable for low-pressure air and water service
- Brass body construction for durability and corrosion resistance
- EPDM seals provide excellent compatibility with water and a wide range of fluids
- NEMA 4X enclosure rating — protected against dust, splashing water, and corrosion
- Integrated junction box simplifies field wiring and installation
Specifications
- Brand: ASCO
- Model / SKU: JKF8030G3E-24V
- Valve Type: 2-Way Solenoid, Normally Closed
- Port Size: 3/4″ NPT
- Coil Voltage: 24VAC
- Flow Coefficient (Cv): 5
- Operating Pressure: 0–2 PSI
- Media: Air and Water
- Body Material: Brass
- Seal Material: EPDM
- Enclosure Rating: NEMA 4X
- Wiring: Junction Box Included
Applications
- HVAC water and air control systems
- Commercial and industrial fluid on/off control
- Outdoor or wash-down environments requiring NEMA 4X protection
- Low-pressure pneumatic and water distribution systems
