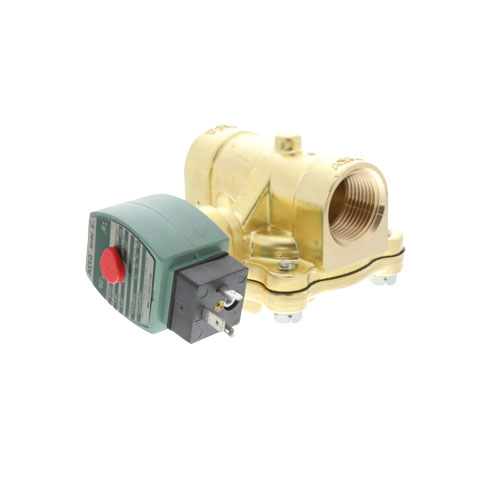

ASCO SC8210G4-24V General Service Solenoid Valve Overview
The ASCO SC8210G4-24V is a 2-way, normally closed, pilot-operated solenoid valve engineered for reliable general service applications in commercial and industrial HVAC, plumbing, and fluid control systems. Built with a durable brass body and NBR (Buna-N) seals, this valve delivers dependable shutoff performance across a broad range of media including air, water, and light oil.
Key Features
- 2-way, normally closed (N.C.) configuration — valve closes when de-energized for fail-safe operation
- 1″ NPT pipe connection for straightforward installation into standard piping systems
- 24VAC coil voltage with DIN terminal connector for easy field wiring
- High flow capacity with a 13 Cv flow coefficient
- Pilot-operated design for efficient, low-power actuation
- Brass body construction for corrosion resistance and long service life
- NBR (Buna-N) seals compatible with water, air, and light oil media
- NEMA 4X enclosure rating — suitable for indoor and outdoor use, including washdown and corrosive environments
Pressure & Media Ratings
- Air and Water: 5–150 PSI operating pressure range
- Light Oil: 5–100 PSI operating pressure range
Electrical Specifications
- Coil Voltage: 24VAC
- Enclosure: NEMA 4X
- Wiring Connection: DIN terminals for fast, secure field connections
Valve Specifications
- Valve Type: 2-Way Solenoid Valve
- Operation: Normally Closed (N.C.), Pilot Operated
- Pipe Size: 1″ NPT
- Flow Coefficient (Cv): 13
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Service: General Service — Air, Water, Light Oil
Applications
- HVAC water and air control systems
- Commercial and industrial fluid shutoff
- Light oil service applications
- Automated process control and building automation systems
- Environments requiring NEMA 4X-rated enclosures (wet, washdown, or corrosive locations)
