Description

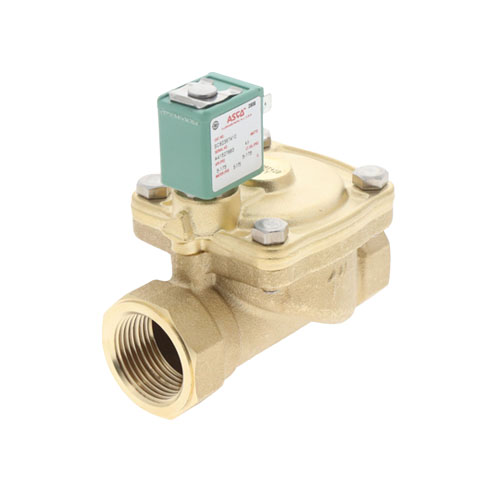

The ASCO SC8238T410 is a 1-inch normally closed (NC) solenoid valve engineered for dependable on/off fluid control in demanding HVAC and mechanical system applications. Designed to handle air and water service across a wide pressure range of 5 to 175 PSI, this valve delivers consistent, leak-tight shutoff performance in both commercial and industrial environments.
Key Features
- 1-inch pipe connection for straightforward inline installation
- Normally closed (NC) operation — valve closes automatically upon power loss for fail-safe system protection
- Wide operating pressure range: 5 to 175 PSI (5/175#)
- Compatible with air and water media
- 120V AC coil voltage for standard electrical compatibility
- ASCO Series 8238 construction for reliable, long-service-life performance
Typical Applications
- HVAC air handling and pneumatic control systems
- Water supply and shut-off circuits
- Commercial and industrial process control
- Boiler and hydronic system fluid management
Specifications
- Brand: ASCO
- Model / SKU: SC8238T410
- Valve Type: Solenoid Valve, Normally Closed (NC)
- Connection Size: 1 inch
- Operating Pressure Range: 5–175 PSI
- Media: Air, Water
- Coil Voltage: 120V AC
