Description

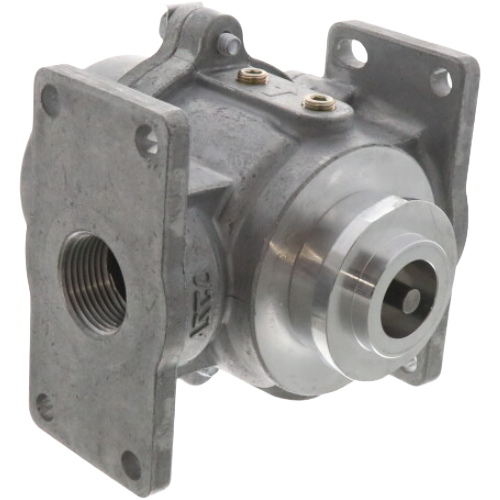

The ASCO V710FBSV22 is a heavy-duty 2-way, normally closed solenoid valve engineered for reliable fluid and gas control in demanding HVAC and industrial applications. Built around a die-cast aluminum valve body, this valve combines durability with lightweight construction, making it well-suited for a wide range of commercial and light-industrial installations.
Key Features
- 2-Way, Normally Closed (NC) configuration — valve closes automatically when de-energized for fail-safe operation
- 1″ NPT or Flanged end connections for flexible installation in new or retrofit piping systems
- High flow capacity: 20 Cv flow coefficient with a rated capacity of 1,075 CFH
- Operating pressure range: 0–15 PSI
- Die-cast aluminum valve body — corrosion-resistant, lightweight, and durable
- Quick Opening trim for fast, responsive actuation
- Valve Seal Overtravel trim design for enhanced sealing performance and extended service life
Construction & Design
The V710FBSV22 features ASCO’s proven solenoid valve engineering with a die-cast aluminum body that resists corrosion while keeping overall weight low. The Quick Opening trim ensures rapid valve response, while the Valve Seal Overtravel design compensates for wear over time, maintaining a positive, leak-tight seal throughout the valve’s service life. The dual connection option — NPT or Flanged — provides installation versatility across a broad range of piping configurations.
Specifications
- Brand: ASCO
- Model / SKU: V710FBSV22
- Valve Type: 2-Way, Normally Closed
- Connection Size: 1″
- Connection Type: NPT or Flanged
- Flow Coefficient (Cv): 20
- Flow Capacity: 1,075 CFH
- Operating Pressure: 0–15 PSI
- Valve Body Material: Die-Cast Aluminum
- Trim: Quick Opening with Valve Seal Overtravel
Applications
- HVAC air and gas flow control
- Commercial and light-industrial fluid handling
- Pneumatic and process control systems
- Retrofit and new-construction piping installations
