Description

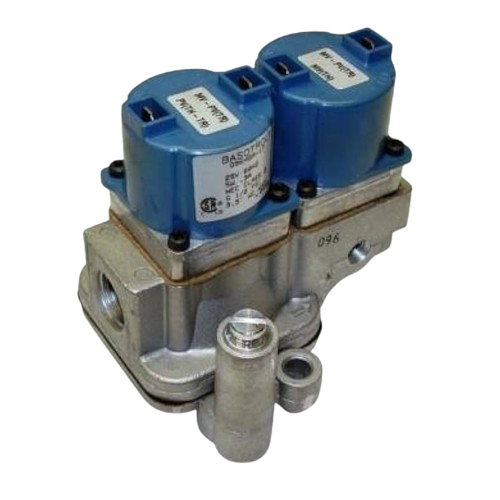

The BASO G96HGA-17C REVB Dual-Operator Gas Valve is a high-performance, precision gas control device engineered for commercial and industrial heating systems. Designed by BASO Gas Products, this valve delivers reliable, safe, and efficient gas regulation for demanding HVAC and combustion system applications.
Key Features:
- Dual-Operator (Dual Solenoid) Design – Offers enhanced safety and control by using two independently operable solenoids, reducing the risk of leakage and improving system reliability.
- ½″ NPT Inlet/Outlet Size – A compact ½″ connection size helps in retrofits or space-constrained installations while meeting rigorous system demands.
- 24V (or available 120V/25V variants) Operation – Standard 24 V control voltage simplifies integration into most HVAC burner control systems; other voltage configurations also exist in the G96 series.
- 3-6″ W.C. Regulating Range – Factory-adjustable regulator supports low differential pressures from 3 to 6 inches of water column (W.C.), enabling accurate gas flow control for natural or LP gas applications.
- Robust Ambient & Media Conditions – Built to withstand ambient surface temperatures from –20 °F to 175 °F (or lower with silicone diaphragm) and rated for inlet pressures up to 0.5 psi with suitable piping.
- Certified & Listed – Conforms to ANSI Z21.21 / CSA 6.5 and ANSI Z21.78 / CSA 6.20 safety standards.
