Description

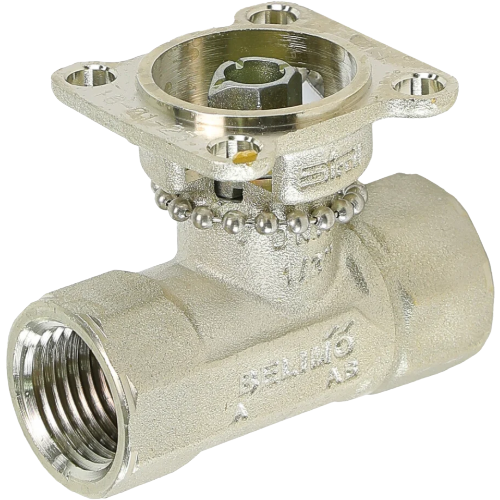

The Belimo B207 is a precision-engineered 2-way ball valve designed for reliable flow control in commercial and light industrial HVAC hydronic systems. Built to handle both chilled and hot water applications, this valve delivers consistent performance across a wide range of operating conditions.
Key Features
- 1/2″ NPT threaded connection for straightforward installation
- 0.3 Cv flow coefficient for accurate, low-flow control
- 2-way, equal percentage flow characteristic for precise modulating control
- Nickel-plated forged brass body for superior corrosion resistance and durability
- Stainless steel ball and stem for long service life and reliable sealing
- Rated for chilled water and hot water service up to 212°F maximum
- Compatible with glycol solutions up to 60% concentration
Application
The B207 is ideally suited for use with Belimo actuators in hydronic heating and cooling systems, fan coil units, air handling units, and terminal equipment. The equal percentage flow characteristic ensures smooth, stable control across the full valve stroke, making it an excellent choice for modulating applications where precise temperature regulation is critical.
Construction & Materials
- Body: Nickel-plated forged brass
- Ball and stem: Stainless steel
- Connection type: NPT threaded
- Pipe size: 1/2″
Specifications
- SKU: B207
- Brand: Belimo
- Pipe Size: 1/2″
- Connection: NPT
- Cv: 0.3
- Flow Characteristic: Equal Percentage
- Configuration: 2-Way
- Maximum Temperature: 212°F
- Glycol Compatibility: Up to 60% solution
- Body Material: Nickel-Plated Forged Brass
- Ball & Stem Material: Stainless Steel
