Description

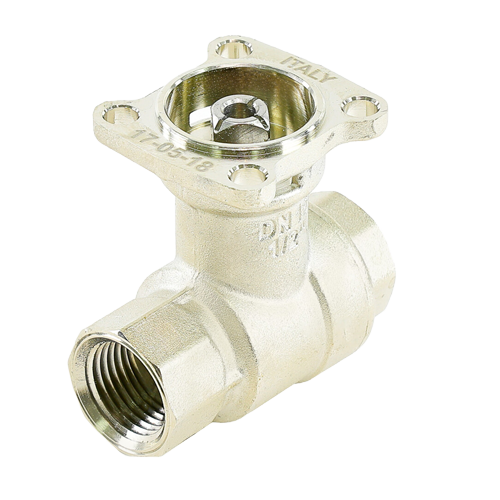

The Belimo B212 is a precision-engineered 2-way ball valve designed for reliable flow control in commercial and industrial HVAC hydronic systems. Built to handle both chilled and hot water applications, this valve delivers consistent performance across a wide range of operating conditions.
Key Features
- 1/2″ NPT threaded connections for straightforward installation into standard piping systems
- 2-way configuration for reliable on/off or modulating flow control
- 3.0 Cv flow coefficient for accurate and predictable flow performance
- Equal percentage flow characteristic for precise modulating control across the full stroke range
- Nickel-plated forged brass body for superior corrosion resistance and long service life
- Stainless steel ball and stem for enhanced durability and resistance to wear and corrosion
- Rated for chilled water and hot water applications up to 212°F (100°C) maximum
- Compatible with glycol solutions up to 60% concentration
Application
The B212 is ideal for use in heating, cooling, and chilled water coil control applications. Its equal percentage flow characteristic makes it well-suited for modulating control when paired with a compatible Belimo actuator, providing smooth and stable temperature regulation in air handling units, fan coil units, and other hydronic terminal equipment.
Construction & Materials
- Body: Nickel-plated forged brass
- Ball and stem: Stainless steel
- Connection type: NPT (National Pipe Thread)
- Connection size: 1/2″
Specifications
- SKU: B212
- Brand: Belimo
- Valve type: Ball valve
- Configuration: 2-way
- Flow characteristic: Equal percentage
- Cv: 3.0
- Pipe size: 1/2″
- Connection: NPT
- Maximum temperature: 212°F
- Glycol compatibility: Up to 60% solution
- Media: Chilled water, hot water
