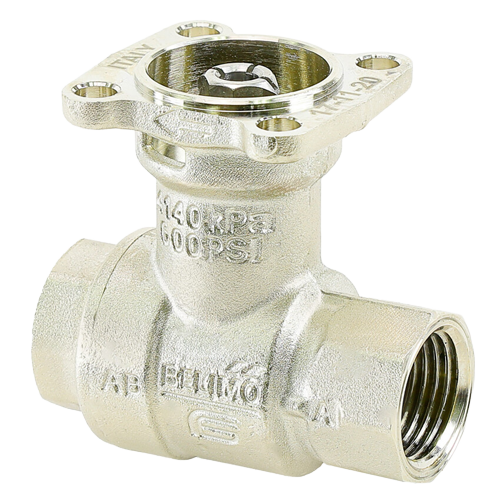

Belimo B213 Ball Valve, 1/2″ NPT, 4.7 Cv, 2-Way, Equal Percentage

Description

The Belimo B213 is a precision-engineered 2-way ball valve designed for reliable flow control in chilled and hot water HVAC systems. Built to withstand demanding hydronic applications, this valve features a nickel-plated forged brass body paired with a stainless steel ball and stem for outstanding corrosion resistance and long service life.

Key Features

• 1/2″ NPT end connections for straightforward installation
• 4.7 Cv flow coefficient for accurate flow capacity sizing
• 2-way, equal percentage flow characteristic for precise modulating control
• Nickel-plated forged brass body for superior durability and corrosion resistance
• Stainless steel ball and stem for reliable, long-lasting performance
• Rated for chilled water and hot water applications up to 212°F maximum
• Compatible with fluid mixtures containing up to 60% glycol solution

Application

The B213 is ideally suited for use in commercial and industrial HVAC hydronic systems, including fan coil units, air handling units, and terminal unit control applications. Its equal percentage flow characteristic provides excellent controllability across the full valve stroke, making it the preferred choice for modulating control with Belimo actuators.

Specifications

• Model: B213
• Connection Type: NPT (National Pipe Thread)
• Pipe Size: 1/2″
• Flow Coefficient (Cv): 4.7
• Valve Configuration: 2-Way
• Flow Characteristic: Equal Percentage
• Body Material: Nickel-Plated Forged Brass
• Ball and Stem Material: Stainless Steel
• Maximum Temperature: 212°F
• Glycol Compatibility: Up to 60% Glycol Solution
• Media: Chilled Water, Hot Water
