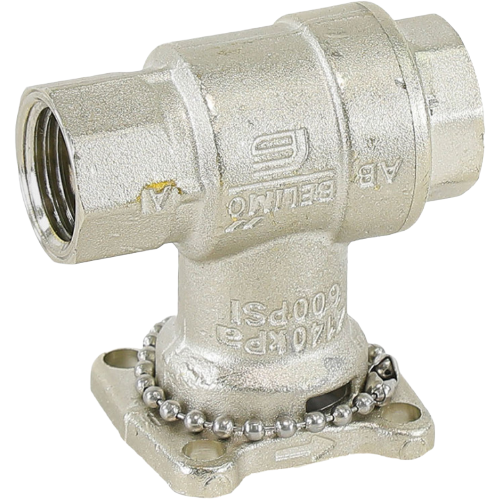

Belimo B214 Two-Way Ball Valve Overview
The Belimo B214 is a high-quality 2-way ball valve engineered for reliable flow control in commercial and industrial HVAC hydronic systems. Featuring a nickel-plated forged brass body paired with a stainless steel ball and stem, this valve is built to withstand the demands of both chilled water and hot water applications. Its equal percentage flow characteristic delivers precise, stable control across a wide range of operating conditions.
Key Features
- Connection type: 1/2″ NPT threaded
- Flow coefficient: 7.4 Cv
- Configuration: 2-way (on/off or modulating)
- Flow characteristic: Equal percentage
- Body material: Nickel-plated forged brass
- Ball and stem material: Stainless steel for corrosion resistance
- Maximum fluid temperature: 212°F (100°C)
- Compatible with glycol solutions up to 60% concentration
- Suitable for chilled water and hot water HVAC applications
Application & Benefits
The B214 is designed to pair with Belimo actuators for automated flow control in air handling units, fan coil units, heat exchangers, and other hydronic terminal equipment. The stainless steel ball and stem resist corrosion and scaling, extending service life in both glycol-treated and standard water systems. The equal percentage flow characteristic ensures smooth, proportional control, minimizing hunting and improving system stability. The nickel-plated forged brass body provides excellent durability and resistance to the rigors of continuous HVAC service.
Specifications
- SKU: B214
- Brand: Belimo
- Pipe size: 1/2″
- Connection: NPT (threaded)
- Cv rating: 7.4
- Valve type: 2-way ball valve
- Flow characteristic: Equal percentage
- Body material: Nickel-plated forged brass
- Ball/stem material: Stainless steel
- Maximum temperature: 212°F
- Glycol compatibility: Up to 60% solution
- Application: Chilled water / hot water HVAC systems
