Description

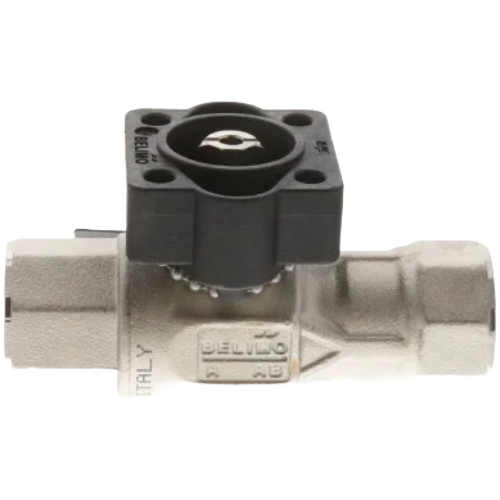

The Belimo B220HT731 is a high-performance 2-way ball valve engineered for demanding hydronic and steam applications where standard valves fall short. Built with a robust brass body and a stainless steel ball and stem, this valve delivers reliable, long-lasting service in high-temperature water systems up to 266°F and low-pressure steam environments. Its compatibility with glycol solutions up to 60% makes it an ideal choice for freeze-protected hydronic heating systems.
Key Features
- 3/4″ NPT end connections for straightforward installation into standard piping systems
- 7.31 Cv flow coefficient for precise, efficient flow control
- 2-way configuration for on/off or modulating flow control
- Equal percentage flow characteristic for accurate, linear control response across the full valve stroke
- Brass body construction for corrosion resistance and durability
- Stainless steel ball and stem for enhanced strength and resistance to high-temperature media
- Rated for high-temperature water applications up to 266°F (130°C) maximum
- Suitable for low-pressure steam applications
- Compatible with glycol solutions up to 60% concentration
Applications
- Commercial and industrial hydronic heating systems
- High-temperature hot water (HTHW) distribution
- Low-pressure steam systems
- Glycol-based freeze protection systems
- Fan coil units, air handling units, and heat exchangers
Specifications
- Brand: Belimo
- SKU: B220HT731
- Valve Type: Ball Valve
- Pipe Size: 3/4″
- Connection Type: NPT
- Flow Coefficient (Cv): 7.31
- Flow Characteristic: Equal Percentage
- Configuration: 2-Way
- Body Material: Brass
- Ball and Stem Material: Stainless Steel
- Maximum Temperature: 266°F (High Temperature Water)
- Steam Rating: Low Pressure Steam
- Glycol Compatibility: Up to 60% Glycol Solution
