Description

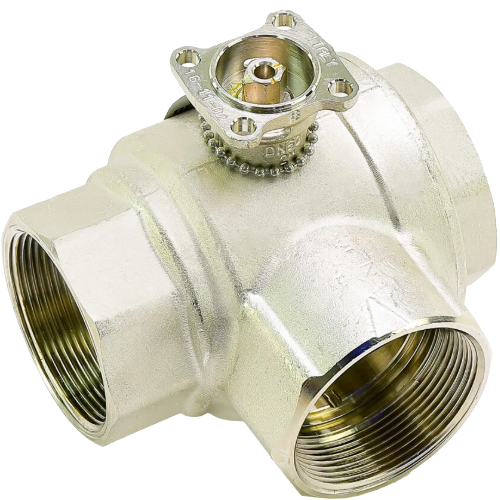

The Belimo B350L is a heavy-duty 2-inch NPT, 3-way ball valve engineered for reliable flow control in demanding commercial and industrial HVAC hydronic systems. With an 87 Cv flow coefficient and a modified linear flow characteristic, this valve delivers precise, repeatable control across a wide range of chilled water and hot water applications.
Key Features
- 2-inch NPT threaded connections for straightforward installation into standard piping systems
- 3-way configuration supports mixing or diverting applications
- Modified linear flow characteristic for accurate, proportional control
- 87 Cv flow coefficient accommodates high-flow hydronic systems
- Nickel-plated brass body for corrosion resistance and long service life
- Chrome-plated brass ball for smooth, durable operation
- Nickel-plated brass stem for added corrosion protection
- Rated for chilled water and hot water service up to 250°F maximum
- Compatible with fluid mixtures containing up to 60% glycol solution
Construction & Materials
- Body: Nickel-plated brass
- Ball: Chrome-plated brass
- Stem: Nickel-plated brass
- Connection type: NPT (National Pipe Thread)
- Valve size: 2 inches
Application
The B350L is designed for use in commercial HVAC hydronic systems where precise flow control of chilled or hot water is required. Its glycol compatibility — up to 60% solution — makes it well-suited for freeze-protection applications in cold climates or process cooling systems. The modified linear flow characteristic ensures stable control performance when paired with a compatible Belimo actuator.
Specifications
- Valve Type: Ball Valve, 3-Way
- Pipe Size: 2 inch
- Connection: NPT
- Cv Rating: 87
- Flow Characteristic: Modified Linear
- Body Material: Nickel-Plated Brass
- Ball Material: Chrome-Plated Brass
- Stem Material: Nickel-Plated Brass
- Maximum Temperature: 250°F
- Glycol Compatibility: Up to 60% glycol solution
- Media: Chilled Water, Hot Water
