Description

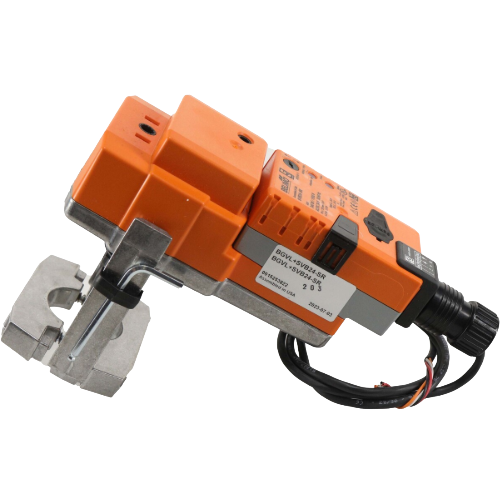

The Belimo BGVL+SVB24-SR is a factory-assembled combination of a Belimo BGVL globe valve body paired with the SVB24-SR non-fail-safe, 24V proportional actuator. Designed for demanding commercial and industrial HVAC hydronic systems, this assembly delivers accurate, modulating flow control for heating and cooling applications including air handling units, fan coil units, and terminal units.
Valve Body — BGVL
- Belimo BGVL series globe valve body
- Designed for hydronic heating and cooling systems
- Suitable for use with hot water, chilled water, and glycol solutions
- Robust brass or stainless steel internal construction for long service life
- Factory-matched and assembled with the SVB24-SR actuator for reliable, calibrated performance
Actuator — SVB24-SR
- Supply voltage: 24V AC/DC
- Non-fail-safe (spring-return not included) — valve holds last position on power loss
- Proportional (modulating) control signal: 0–10 VDC or 2–10 VDC (field selectable)
- Compact, direct-coupled design — no couplings or linkages required
- Manual override for commissioning and maintenance
- Visual position indicator for easy field verification
- UL listed and CE marked for broad application compliance
Key Features & Benefits
- Proportional modulating control for precise flow regulation and energy efficiency
- Non-fail-safe design ideal for applications where valve position retention on power loss is acceptable
- Factory-assembled combination reduces installation time and ensures compatibility
- 24V power supply compatible with standard building automation and HVAC control systems
- Belimo’s proven actuator technology for low maintenance and long operational life
- Suitable for integration with BAS/DDC systems via standard analog control signals
Typical Applications
- Air handling units (AHUs)
- Fan coil units (FCUs)
- Terminal heating and cooling units
- Commercial hydronic heating and chilled water systems
- Building automation system (BAS) controlled HVAC plants
The Belimo BGVL+SVB24-SR represents Belimo’s commitment to precision, reliability, and ease of installation. The pre-matched valve and actuator combination simplifies specification and procurement while ensuring optimal system performance right out of the box.
