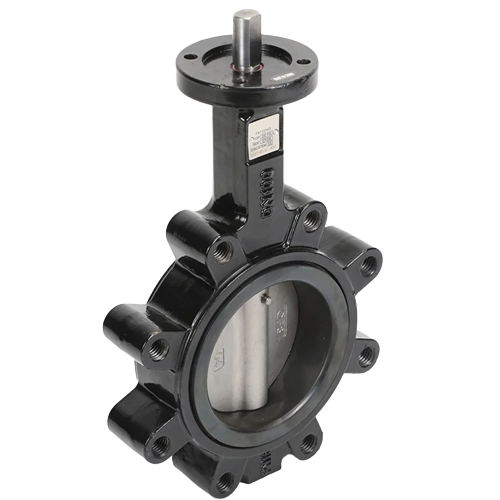

Belimo F6100HD 2-Way Ductile Iron Butterfly Valve Overview
The Belimo F6100HD is a heavy-duty, 2-way ductile iron (DI) butterfly valve assembly engineered for demanding commercial and industrial HVAC hydronic systems. With a 4-inch pipe size, a high-flow Cv of 600, and a close-off pressure (COP) rating of 200 PSI, this valve delivers exceptional flow control performance and long-term reliability in high-pressure applications.
Key Features
- 2-way valve configuration for precise on/off or modulating flow control
- Ductile iron (DI) valve body for superior strength and durability
- Stainless steel disc for excellent corrosion resistance and extended service life
- 4-inch pipe size to accommodate high-volume flow requirements
- High flow capacity with a Cv rating of 600
- Close-off pressure (COP) rating of 200 PSI for reliable sealing under high-pressure conditions
- Designed for use with compatible Belimo actuators for complete valve assembly solutions
Specifications
- SKU: F6100HD
- Brand: Belimo
- Valve Type: 2-Way Butterfly Valve
- Body Material: Ductile Iron (DI)
- Disc Material: Stainless Steel
- Pipe Size: 4 inch
- Flow Coefficient (Cv): 600
- Close-Off Pressure (COP): 200 PSI
Applications
- Commercial and industrial HVAC hydronic systems
- Chilled water and hot water distribution systems
- High-pressure piping applications requiring reliable shut-off
- Building automation and energy management systems
