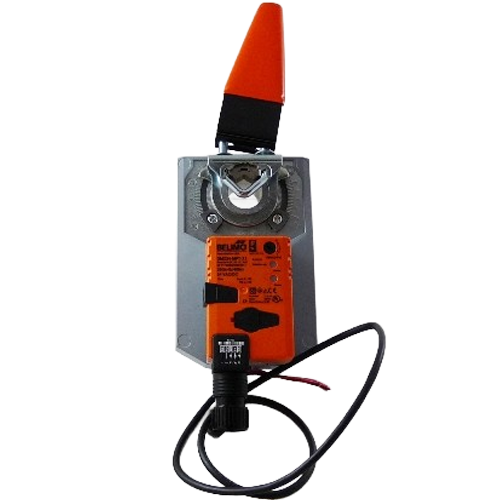

Belimo GMX24-MFT-X1 Rotary Actuator, 360 in-lb, Multi-Function, 24V

Description

The Belimo GMX24-MFT-X1 is a heavy-duty rotary damper actuator engineered for demanding commercial and industrial HVAC applications. Featuring Belimo’s Multi-Function Technology (MFT), this actuator offers unmatched flexibility by supporting multiple control signal types in a single unit — eliminating the need to stock multiple actuator models for different control configurations.

Key Features

• High torque output of 360 in-lb, ideal for large dampers and high-resistance applications
• Multi-Function Technology (MFT) supports a wide range of control signal inputs
• Compatible with 4–20 mA signals using 500 Ohm input impedance
• Compatible with PWM signals using 1500 Ohm input impedance
• Supports floating point and On/Off control modes
• Accepts 2–10 Vdc control signal input
• Dual voltage operation: 24 Vac and 24 Vdc
• Rotary actuator design for direct-coupled damper shaft mounting

Electrical Specifications

• Supply Voltage: 24 Vac / 24 Vdc
• Control Signal: 4–20 mA (500 Ohm), PWM (1500 Ohm), Floating Point, On/Off, 2–10 Vdc

Mechanical Specifications

• Actuator Type: Rotary
• Torque: 360 in-lb

Why Choose the Belimo GMX24-MFT-X1?

Belimo’s MFT platform allows technicians and engineers to configure the actuator in the field to match virtually any control system requirement. Whether your BAS uses analog current, analog voltage, pulse-width modulation, or simple floating/On-Off control, the GMX24-MFT-X1 adapts to the job. The robust 360 in-lb torque rating ensures reliable operation even on large, high-static-pressure damper assemblies. This versatility reduces installation time, simplifies inventory management, and delivers long-term reliability in commercial HVAC systems.
