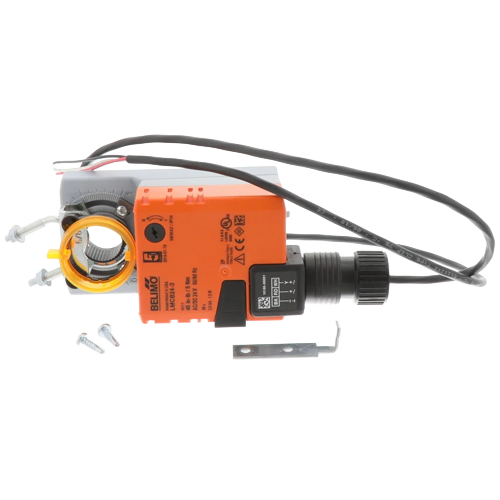

Belimo LMCB24-3 Rotary Actuator, 45 in-lb, On/Off/Float, 24Vac/24Vdc

Description

The Belimo LMCB24-3 is a robust rotary damper actuator engineered for dependable performance in commercial and industrial HVAC applications. Designed to deliver precise damper positioning, this actuator operates on both 24 Vac and 24 Vdc power supplies, making it highly versatile for a wide range of building automation and HVAC control systems.

Key Features

• Rotary actuator design for reliable damper shaft engagement
• 45 in-lb torque output — suitable for medium-duty damper applications
• On/Off/Float control mode for flexible system integration
• Dual-voltage compatibility: 24 Vac and 24 Vdc power supply
• Compact, direct-coupled design eliminates the need for crank arms or linkages
• Manual override function for commissioning and emergency operation
• Rugged housing built to withstand demanding HVAC environments

Application

The LMCB24-3 is ideal for use with HVAC dampers in air handling units, VAV systems, economizers, and ventilation control applications. Its On/Off/Float control signal makes it compatible with a broad range of building automation controllers and zone control panels.

Specifications

• Brand: Belimo
• Model / SKU: LMCB24-3
• Actuator Type: Rotary
• Torque: 45 in-lb
• Control Type: On/Off/Float
• Power Supply: 24 Vac / 24 Vdc
