Belimo PRBUP-MFT-T-200 24-240V 2-10VDC 2xSPDT Actuator

Description

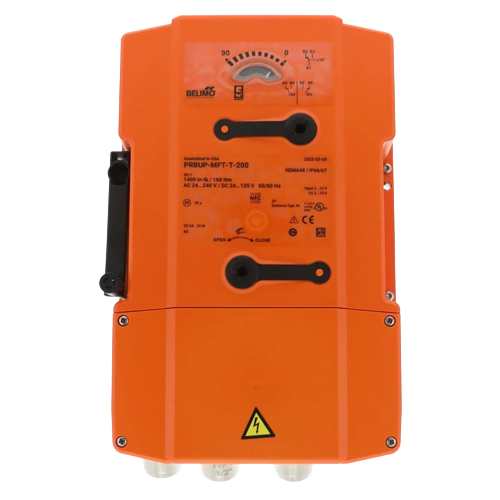

Belimo PRBUP-MFT-T-200 Proportional Rotary Bypass Actuator Overview

The Belimo PRBUP-MFT-T-200 is a heavy-duty proportional rotary bypass actuator engineered for demanding commercial and industrial HVAC applications. Featuring Belimo’s Multi-Function Technology (MFT), this actuator accepts a wide range of input signals and supply voltages, making it one of the most versatile and field-configurable actuators available. With 200 in-lb of torque output, it delivers reliable, precise positioning for bypass dampers and similar applications.

Key Features

• Wide supply voltage range: 24–240V AC/DC for maximum installation flexibility
• Multi-Function Technology (MFT) accepts 2–10VDC proportional control signal
• 200 in-lb torque output for robust bypass damper actuation
• 2x SPDT (Single Pole Double Throw) auxiliary switches for end-position feedback and interlocking
• Proportional control for precise, modulating damper positioning
• Field-selectable direction of rotation and signal range via MFT configuration
• Fail-safe or non-spring-return operation depending on configuration
• Compact, rugged housing suitable for commercial HVAC environments

Multi-Function Technology (MFT)

Belimo’s MFT platform allows technicians to configure the actuator on-site without special tools. Signal range, direction of rotation, and operating parameters can be adjusted to match virtually any control system or DDC/BAS environment. This eliminates the need to stock multiple actuator variants and simplifies commissioning.

Dual SPDT Auxiliary Switches

The integrated 2x SPDT auxiliary switches provide independent end-position signaling, enabling seamless integration with building automation systems, interlocking sequences, and status monitoring. Each switch can be independently set to actuate at a desired position within the actuator’s travel range.

Typical Applications

• HVAC bypass damper control in air handling units (AHUs)
• Variable air volume (VAV) bypass systems
• Commercial building automation and DDC systems
• Industrial ventilation and process air control
• Economizer and mixed-air applications

Specifications

• Brand: Belimo
• Model: PRBUP-MFT-T-200
• Supply Voltage: 24–240V AC/DC
• Control Signal: 2–10VDC (MFT configurable)
• Torque: 200 in-lb
• Auxiliary Switches: 2x SPDT
• Actuator Type: Proportional Rotary Bypass Actuator
• Technology: Multi-Function Technology (MFT)
