Description

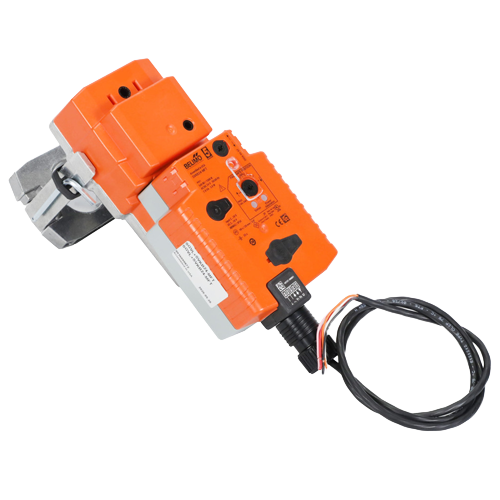

Belimo SGVL+SVKB24-MFT Overview
The Belimo SGVL+SVKB24-MFT is a factory-matched combination of the SVKB24-MFT spring return actuator and the SGVL globe valve linkage kit, engineered for reliable, precise control of large commercial globe valves in HVAC hydronic and steam applications. This pre-paired assembly eliminates compatibility guesswork and streamlines installation on demanding valve control projects.
Actuator Features — SVKB24-MFT
- 24V AC/DC power supply for broad system compatibility
- Spring return (fail-safe) operation ensures the valve returns to a defined safe position on power loss
- 337 in-lb (38 Nm) nominal torque output for positive control of large globe valve bodies
- Multi-Function Technology (MFT) accepts multiple control signal types including On/Off, floating point, 0–10V DC, 2–10V DC, and 4–20 mA — field-selectable via DIP switches
- Proportional or on/off control modes selectable in the field
- Manual override for commissioning and maintenance without power
- Visual position indicator for quick status confirmation
- Auxiliary switch output for end-position feedback to building automation systems
- Compact, rugged housing suitable for commercial mechanical room environments
SGVL Linkage Kit
- Belimo SGVL stainless steel linkage kit designed specifically for globe valve actuator mounting
- Provides a secure, rigid mechanical connection between the SVKB24-MFT actuator and the globe valve stem
- Engineered for precise linear stroke translation, ensuring accurate valve positioning
- Corrosion-resistant stainless steel construction for long service life in demanding hydronic and steam environments
- Factory-matched to the SVKB24-MFT for verified compatibility and simplified installation
Typical Applications
- Chilled water and hot water coil control in commercial AHUs and fan coil units
- Steam and hydronic heating/cooling systems
- Building automation and energy management systems
- Variable flow hydronic systems requiring fail-safe valve positioning
Why Choose Belimo
Belimo is the global leader in actuator and control valve technology for HVAC applications. Belimo products are known for their long service life, energy efficiency, and ease of installation. The MFT platform provides unmatched flexibility for integration into virtually any building automation system, reducing the need for multiple SKUs on the job site.
Specifications Summary
- SKU: SGVL+SVKB24-MFT
- Brand: Belimo
- Supply Voltage: 24V AC/DC
- Actuator Type: Spring Return (Fail-Safe)
- Torque: 337 in-lb (38 Nm)
- Control Signal: MFT — On/Off, Floating, 0–10V, 2–10V, 4–20 mA (field-selectable)
- Linkage: SGVL Stainless Steel Globe Valve Linkage Kit included
- Application: Commercial HVAC globe valve control
