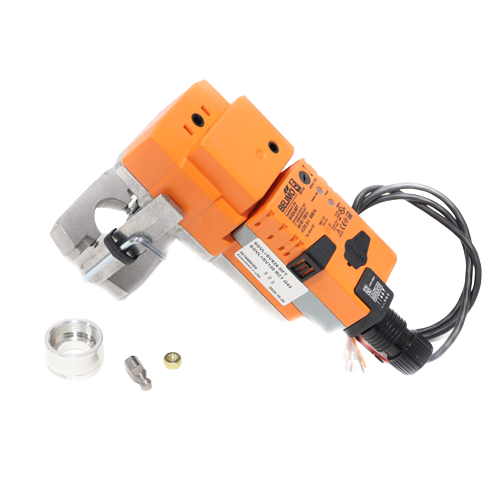

Belimo SGVL+SVX24-MFT SGlobe Valve Linkage with Motor Actuator
The Belimo SGVL+SVX24-MFT is a factory-matched SGlobe valve linkage and actuator assembly engineered for precise control of hydronic heating and cooling systems. Combining a robust non-spring-return actuator with Belimo’s proven SGlobe valve linkage, this unit delivers reliable, repeatable valve positioning in commercial HVAC and building automation applications.
Key Features
- Non-spring-return actuator design for secure, stable valve positioning
- High closing force of 337 lbf for positive valve shutoff under demanding system pressures
- Dual voltage compatibility: 24 Vac / 24 Vdc for flexible installation
- Multiple control signal options: 4–20 mA (500 Ohm input impedance) and PWM (1500 Ohm input impedance)
- Supports floating point and On/Off control modes for broad BAS compatibility
- Factory-matched linkage and actuator assembly for simplified installation and commissioning
- Designed for use with Belimo SGlobe valve bodies in hydronic HVAC systems
Control Signal Specifications
- 4–20 mA signal: 500 Ohm input impedance
- PWM signal: 1500 Ohm input impedance
- Floating point control: supported
- On/Off control: supported
Electrical Specifications
- Supply voltage: 24 Vac / 24 Vdc
- Actuator type: Non-spring return
- Actuator force: 337 lbf
Applications
- Commercial hydronic heating and cooling systems
- Building automation and energy management systems
- Air handling units, fan coil units, and chilled/hot water coil control
- Variable flow hydronic distribution systems
Why Choose Belimo?
Belimo is a global leader in actuator, valve, and sensor solutions for HVAC systems. The SGVL+SVX24-MFT reflects Belimo’s commitment to quality, energy efficiency, and ease of installation — making it a trusted choice for mechanical contractors and building automation professionals alike.
