Description

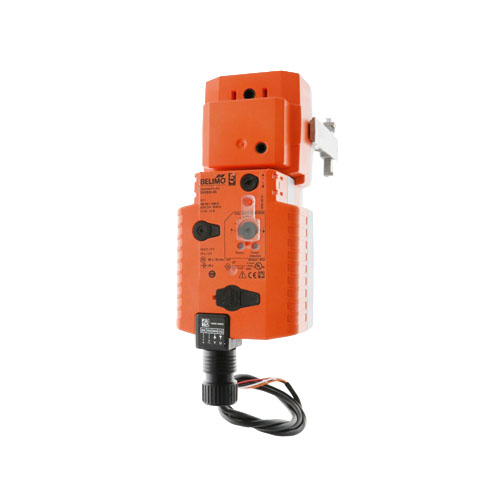

The Belimo UGVL+SVKB24-SR is a factory-matched combination of the UGlobe Valve Linkage (UGVL) and the SVKB24-SR spring-return actuator, engineered for precise flow control in commercial and industrial HVAC hydronic systems. This pre-paired assembly eliminates field compatibility guesswork and delivers reliable, repeatable valve positioning with the added safety of electronic fail-safe operation.
Key Features
- Factory-matched UGlobe valve linkage and spring-return actuator combination
- Electronic fail-safe ensures the valve returns to a defined safe position on power loss
- High force output of 337 lbf (1,500 N) for demanding globe valve applications
- Proportional control via 2–10 Vdc input signal for precise modulation
- Compatible with 24 Vac and 24 Vdc power supplies for flexible installation
- Spring-return mechanism provides reliable fail-safe positioning without external power
- Designed for use with Belimo UGlobe series globe valves in hydronic heating and cooling systems
- Compact, robust construction suitable for commercial building automation environments
Specifications
- SKU: UGVL+SVKB24-SR
- Brand: Belimo
- Actuator Type: Spring-Return (Electronic Fail-Safe)
- Force Output: 337 lbf
- Control Signal: 2–10 Vdc (proportional)
- Power Supply: 24 Vac / 24 Vdc
- Application: UGlobe Series Globe Valves
- Fail-Safe Action: Spring-return to fail-safe position on loss of power
Applications
- Commercial HVAC hydronic heating and cooling coil control
- Building automation and energy management systems
- Air handling unit (AHU) hot water and chilled water coil valve control
- Fan coil unit (FCU) flow regulation
- Industrial process temperature and flow control
The Belimo UGVL+SVKB24-SR is an ideal solution for engineers and contractors who require a high-force, electronically fail-safe globe valve actuator assembly with proportional control. Its pre-matched design saves installation time while ensuring optimal performance and long service life in critical HVAC applications.
