Description

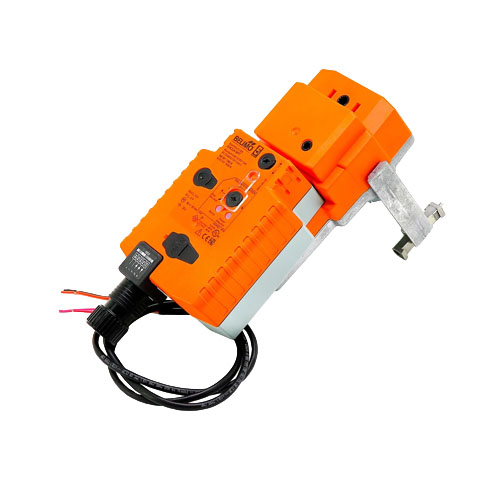

The Belimo UGVL+SVX24-MFT is a complete UGlobe valve linkage and actuator assembly engineered for precise flow control in commercial HVAC hydronic systems. Combining the UGVL linkage with the SVX24-MFT non-spring-return actuator, this factory-matched package delivers reliable, high-force modulation for demanding building automation applications.
Product Overview
Designed for use with Belimo UGlobe control valves, this assembly eliminates the guesswork of pairing separate components. The SVX24-MFT actuator provides versatile signal compatibility, accepting 4–20 mA (500 Ohm input impedance), PWM signals (1500 Ohm input impedance), floating point, and On/Off control — making it adaptable to virtually any building automation or direct digital control (DDC) system.
Key Features
- Non-spring-return actuator design for positive positioning in both directions
- High output force: 337 lbf (1,500 N) for reliable valve authority
- Dual supply voltage compatibility: 24 Vac / 24 Vdc
- Multiple control signal inputs: 4–20 mA (500 Ω), PWM (1,500 Ω), floating point, and On/Off
- Factory-matched UGVL linkage and SVX24-MFT actuator combination
- Suitable for 2-way and 3-way UGlobe valve configurations
- Compact, robust construction for long service life
Control Signal Compatibility
- 4–20 mA analog input: 500 Ohm input impedance
- PWM signal input: 1,500 Ohm input impedance
- Floating point (tri-state) control
- On/Off switching control
Electrical Specifications
- Supply voltage: 24 Vac / 24 Vdc
- Actuator type: Non-spring return (NSR)
- Force output: 337 lbf
Applications
Ideal for chilled water, hot water, and condenser water systems in commercial buildings, the UGVL+SVX24-MFT is well-suited for air handling units, fan coil units, heat exchangers, and other hydronic terminal equipment requiring accurate, high-force valve control.
Why Choose Belimo
Belimo is a globally recognized leader in HVAC actuator and valve technology, known for energy-efficient, reliable products that meet the rigorous demands of modern building automation. The UGVL+SVX24-MFT reflects Belimo’s commitment to quality, versatility, and ease of installation.
