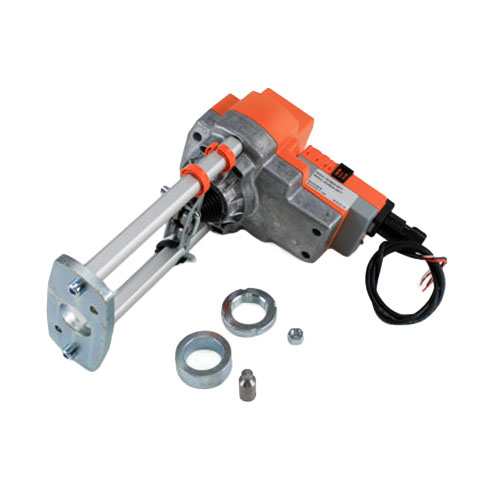

Belimo WGVL+EVB24-MFT WGlobe Valve Linkage with Motor and Actuator Overview
The Belimo WGVL+EVB24-MFT is a complete WGlobe valve linkage assembly paired with an electric actuator, engineered for precise flow control in commercial and industrial HVAC hydronic systems. This non-spring-return actuator delivers robust 562 lbf of force, making it well suited for demanding globe valve applications where reliable, repeatable positioning is critical. Operating on 24Vac or 24Vdc power, it integrates seamlessly into modern building automation and control systems.
Key Features
- Non-spring-return actuator design for positive, bidirectional control
- 562 lbf (2,500 N) actuating force for reliable globe valve operation
- Dual voltage compatibility: 24Vac and 24Vdc
- Multiple control signal options: floating point, On/Off, 4-20mA (500 Ohm input impedance), and PWM (1,500 Ohm input impedance)
- Designed for use with Belimo WGlobe valve bodies via dedicated linkage kit
- Suitable for heating, cooling, and process control applications
- Compact, factory-assembled combination of linkage and actuator for simplified installation
Electrical Specifications
- Supply Voltage: 24Vac / 24Vdc
- Control Signals: Floating point, On/Off, 4-20mA, PWM
- Input Impedance (4-20mA): 500 Ohm
- Input Impedance (PWM): 1,500 Ohm
Mechanical Specifications
- Actuating Force: 562 lbf
- Actuator Type: Non-Spring Return (NSR)
- Assembly: WGlobe Valve Linkage with integrated motor and actuator
Applications
- Commercial HVAC hydronic heating and cooling systems
- Building automation and energy management systems
- Industrial process flow control
- Variable flow and two-position valve control
Why Choose Belimo?
Belimo is a globally recognized leader in HVAC actuator and valve technology, known for precision engineering, long service life, and broad compatibility with building automation protocols. The WGVL+EVB24-MFT combines Belimo’s trusted actuator performance with a purpose-built WGlobe valve linkage, delivering a ready-to-install solution that reduces installation time and ensures optimal valve-actuator compatibility.
