Description

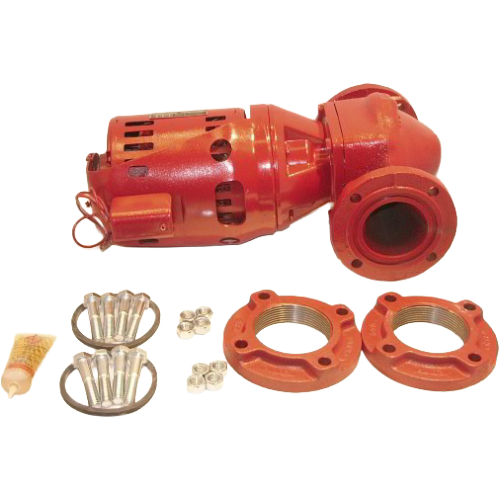

The Bell & Gossett 102226 is a heavy-duty, three-piece oil-lubricated circulator pump engineered for reliable performance in residential and commercial hydronic heating systems. Built around the proven HD3 model platform, this pump delivers consistent flow and long service life in demanding closed-loop applications.
Key Features
- Model HD3 three-piece construction for easy in-line service and maintenance without disturbing the piping
- 1/3 HP motor output for dependable hydronic circulation performance
- Dual-voltage capability: 115V AC / 230V AC, single-phase — adaptable to a wide range of electrical configurations
- Cast iron pump body for superior durability and corrosion resistance in hydronic applications
- Oil-lubricated bearing design for smooth, quiet operation and extended service intervals
- Designed for use with 3″ flanges for straightforward installation into existing piping systems
- Ideal for hot water heating, boiler circulation, and hydronic distribution systems
Specifications
- SKU: 102226
- Model: HD3
- Horsepower: 1/3 HP
- Voltage: 115V AC / 230V AC
- Phase: Single Phase
- Body Material: Cast Iron
- Lubrication: Oil Lubricated
- Flange Size: 3″
- Configuration: Three-Piece
Applications
- Residential and light commercial hydronic heating systems
- Hot water boiler circulation
- Closed-loop hydronic distribution
- Radiant heating systems
The Bell & Gossett HD3 series has long been a trusted name among HVAC professionals for its robust construction and field-proven reliability. The three-piece design simplifies maintenance by allowing the motor and bearing assembly to be removed and serviced without cutting into the piping, saving valuable time on service calls. With dual-voltage flexibility and cast iron durability, the 102226 is a go-to solution for contractors and engineers specifying hydronic circulators.
